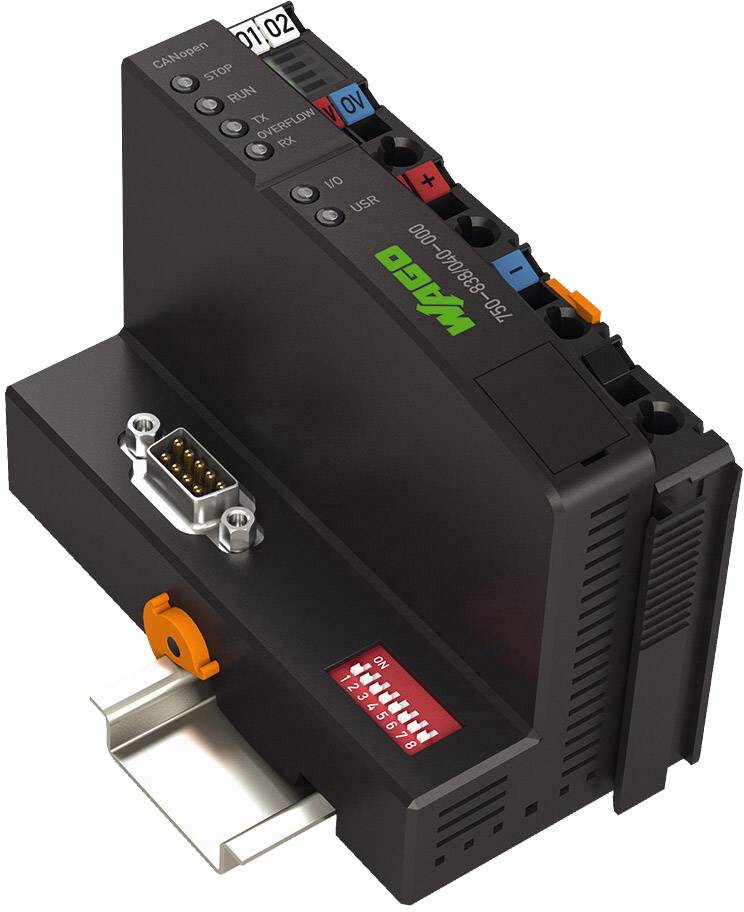

WAGO CANopen M3 Dsub XTR PLC controller 750-838/040-000 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
PLC controller
- Interfaces
CANopen
- Type
CANopen M3 Dsub XTR
- No. of analogue inputs
64
- No. of analogue outputs
0
- No. of digital inputs (max.)
0
- Operating voltage
24 V DC
- Height
71.1 mm
- Length
100 mm
- Width
50.5 mm
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
IP20
- Dim
(L x W x H) 100 x 50.5 x 71.1 mm
- Display
No
- Manufacturer part #
750-838/040-000
- Transfer rate
10 / 100 MBit/s
- Weight
182 g
- Factory colour
Dark grey
- Mounting type
DIN rail
- Series
ETHERNET
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1924028 WAGO CANopen M3 Dsub XTR PLC controller 750-838/040-000 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1924028 WAGO CANopen M3 Dsub XTR PLC controller 750-838/040-000 1 pc(s)
Description
The Controller 750 XTR are on the dark gray color is easy to recognize. You benefit from the unique value, you have the system in applications under extreme environmental conditions.
An extreme temperature resistance, resistance to interference as well as voltage and resistance to vibration are outstanding characteristics of the WAGO I/O system 750 XTR.
This makes it the first choice for demanding applications such as:
• Shipbuilding and On-/offshore industry
• Systems for renewable energies (wind power, photovoltaic and biogas plants)
• Local power stations and power distribution
• Petrochemicals
• Water and wastewater industry
• Special machine construction
• Railway Applications
Shipbuilding and the on-/offshore industry
International approvals, including, in particular, with industry-specific character, among other things, enable the use in shipbuilding. The achieved environment categories allow both at the ship diesel as well as in the
Emc-sensitive area of the bridge. Because the requirements for the noise immunity or interference emission and mechanical strength in this area significantly larger, this also other sectors.
Telecontrol technology
Standardized telecontrol protocols in accordance with IEC 60870-5, IEC 61850 and IEC 6140 0-25 and the use of the DNP3 Secure Controller 750 XTR in the telecontrol systems. In addition, the increased requirements with regard to voltage strength in accordance with the EN 60870-2-1 fully met. The result is a tailor-made solution for demanding telecontrol applications that all requirements in the best sense.
This text is machine translated.
