Buy WAGO Current sensor 1 pc(s) 789-621 IP20

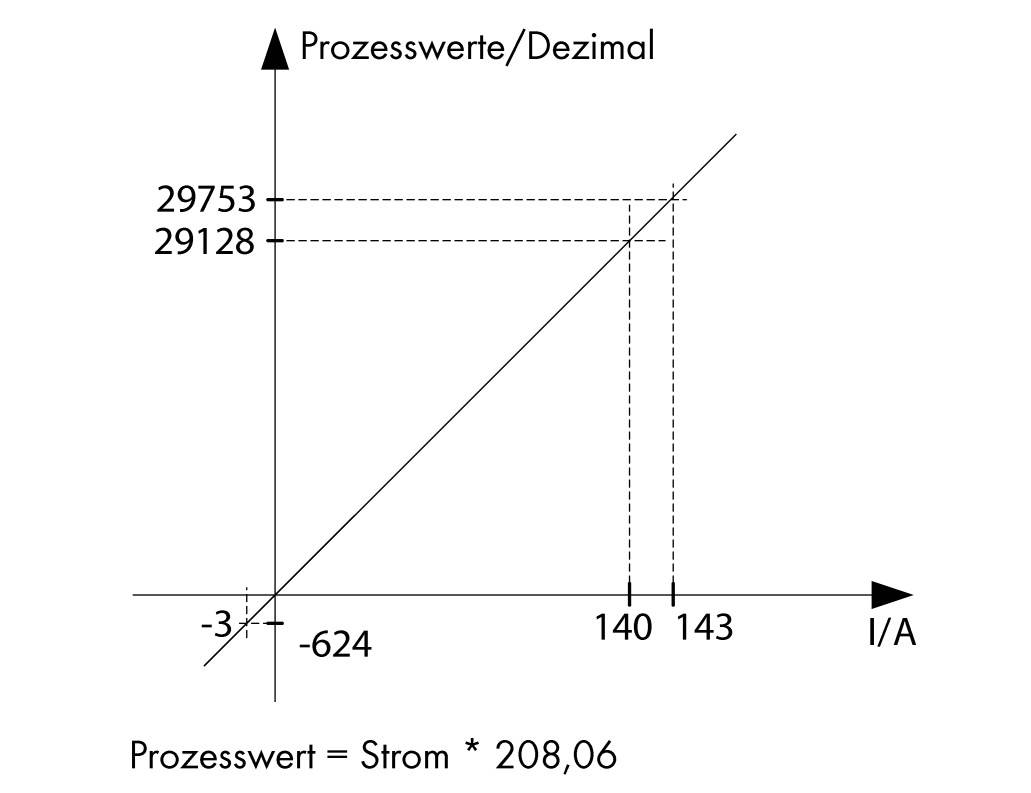

The diagram shows the relationship between process values in decimal and current in I/A. Labels: '29753', '29128', '-3', '-624', '140', '143'. Text: 'Process value = Current * 208.06'.

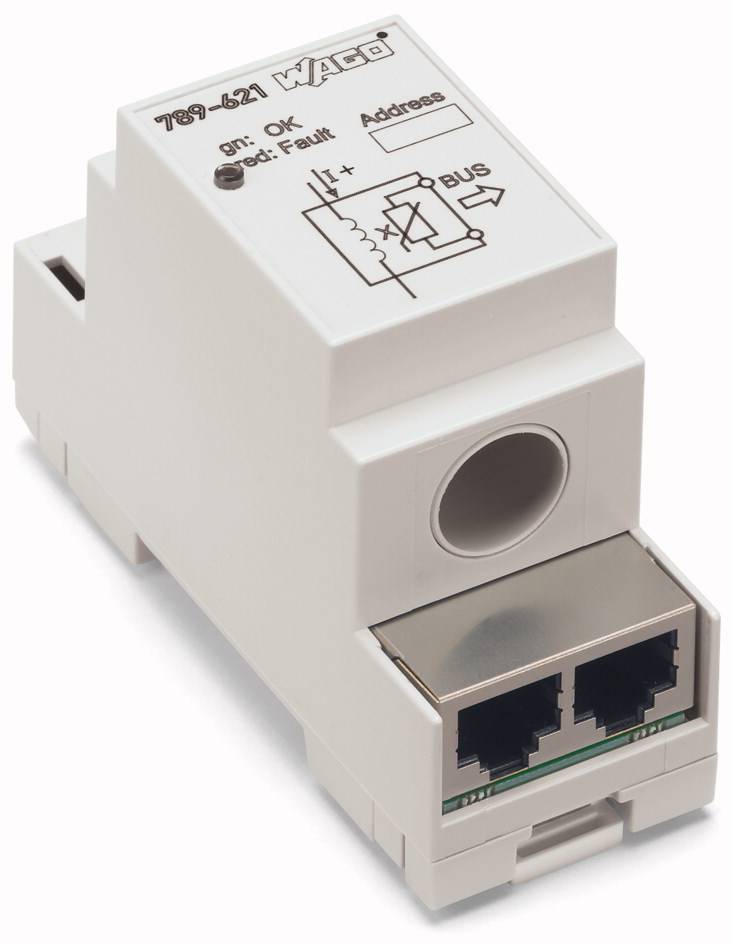

A WAGO bus termination module with two RJ45 ports and a status indicator for OK and error conditions. Diagram showing connection configuration.

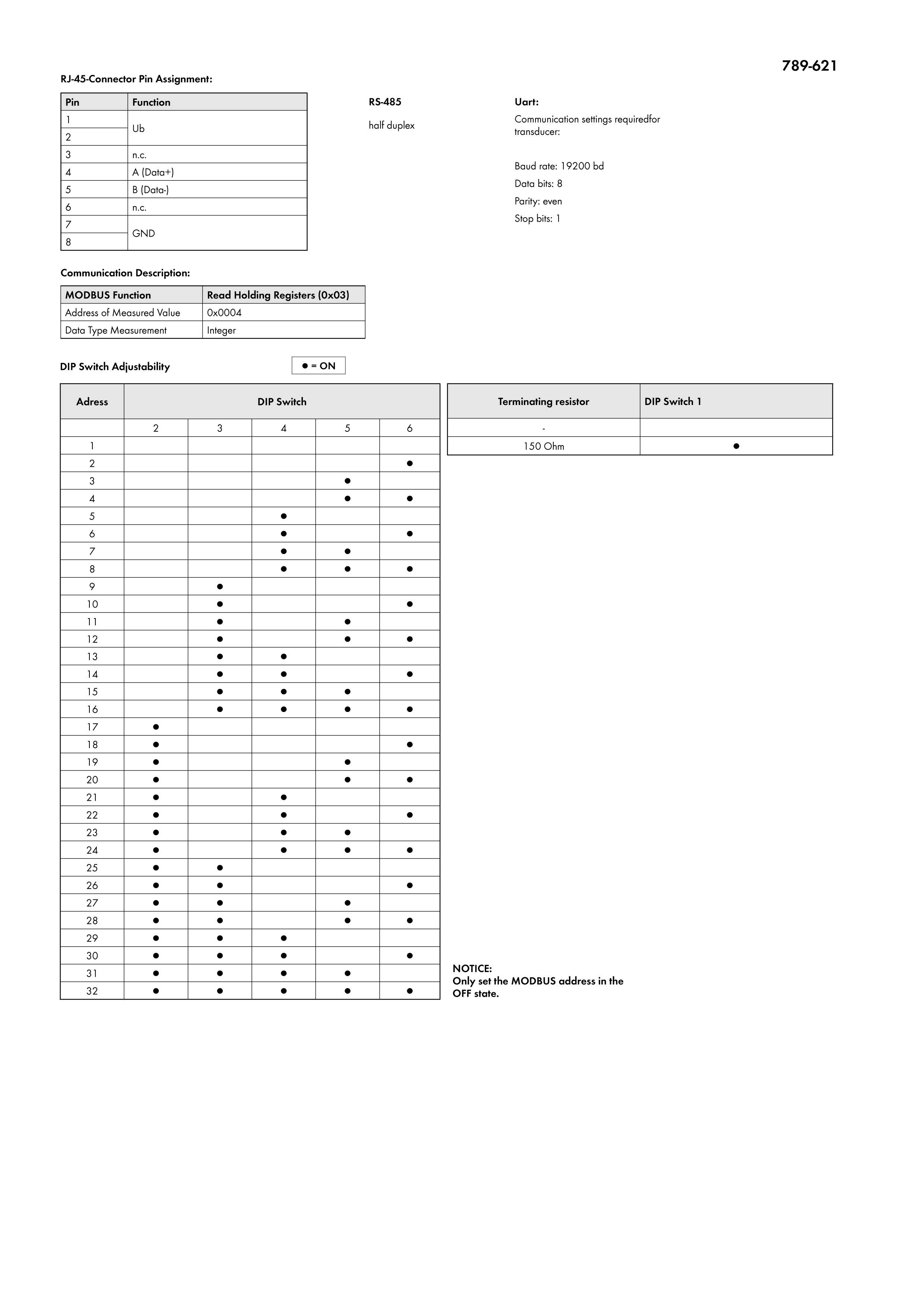

'A PDF document shows a table for the DIP switch configuration of a BA65 control protocol with columns for address, DIP switch, and description.'

1/3

Product type

Current sensor

Connection

RJ45

Type

789-621

IP rating

IP20

Min. temperature

-20 °C

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Measuring range: 0 - 140 A/DC
RS-485 interface
Transmission channels: half-duplex, 8 bit data, 1 stop bit
Data transfer rate up to 19200 baud

Product type: Current sensor

Type: 789-621

Connection: RJ45

: IP20

Min. temperature: -20 °C

Max. temperature: +70 °C

Width: 35 mm

Height: 55 mm

Length: 90 mm

Dim: (L x W x H) 90 x 35 x 55 mm

Content: 1 pc(s)

Type: 789-621

Documents & Downloads

Datasheet

Datasheet 641064 WAGO Current sensor 1 pc(s) 789-621 IP20

User & Safety Instructions

User & Safety Instructions 641064 WAGO Current sensor 1 pc(s) 789-621 IP20

Description

Intelligent power sensor for monitoring of solar systems or inverters for DC current measurements with a large measurement range.

This text is machine translated.
