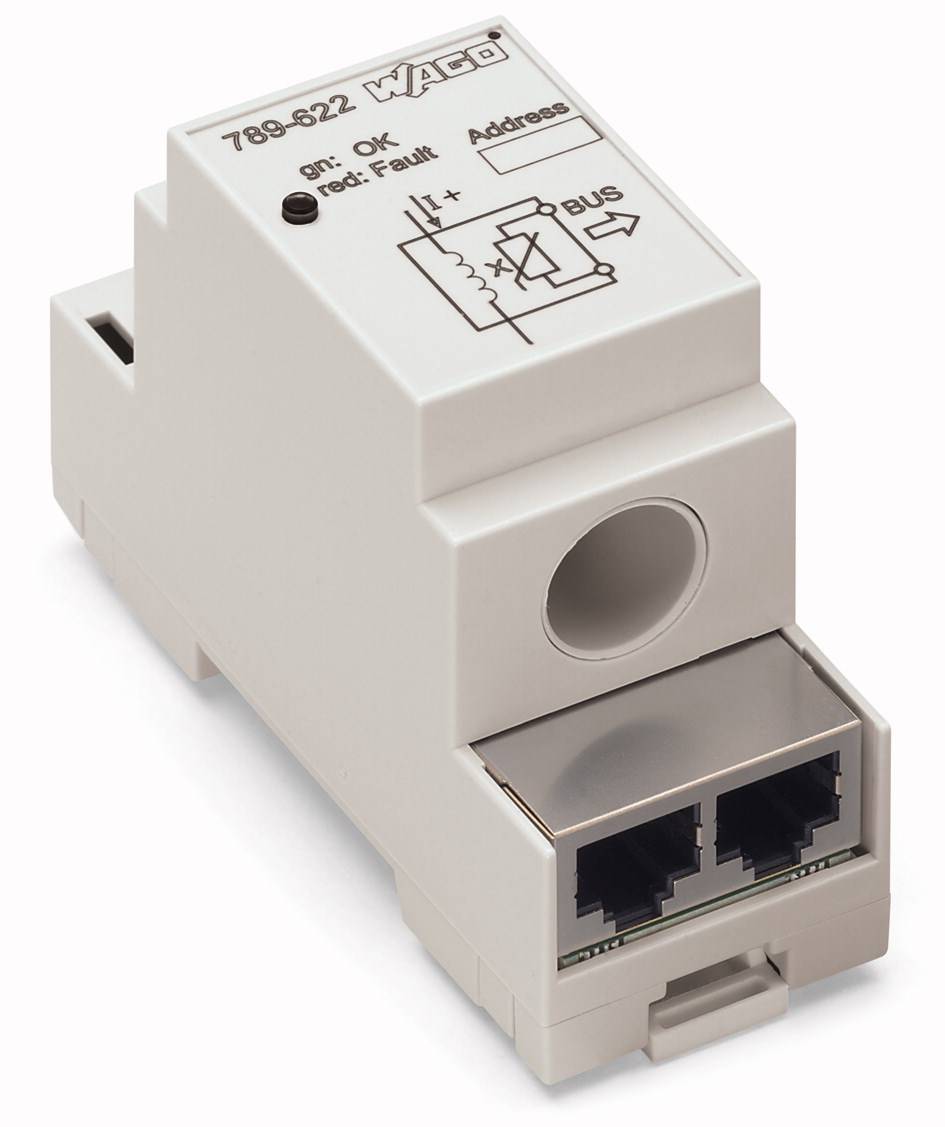

WAGO Current sensor 1 pc(s) 789-622 12 - 34 V DC IP20
EAN:
Part number:
Item no:
Product type
Current sensor
Connection
RJ45
Min. operating voltage
12 V DC
Max. operating voltage
34 V DC
Type
789-622
Datasheet (PDF)
Technical specifications

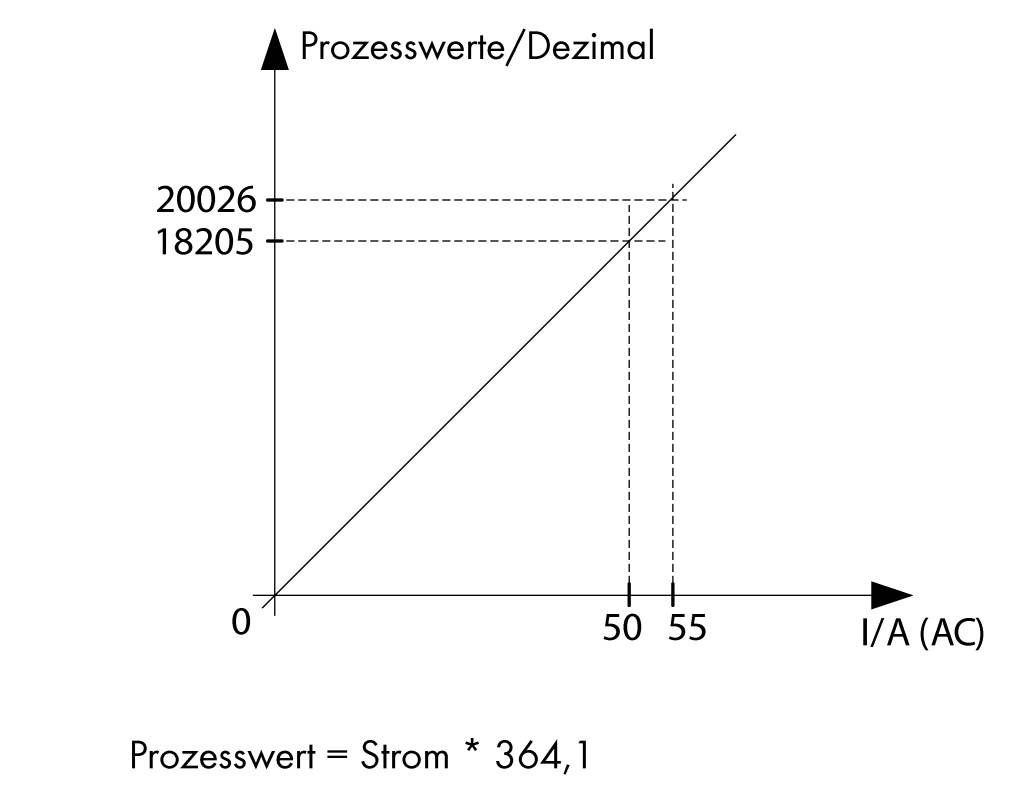

- Measuring range: 0 - 50 A/AC

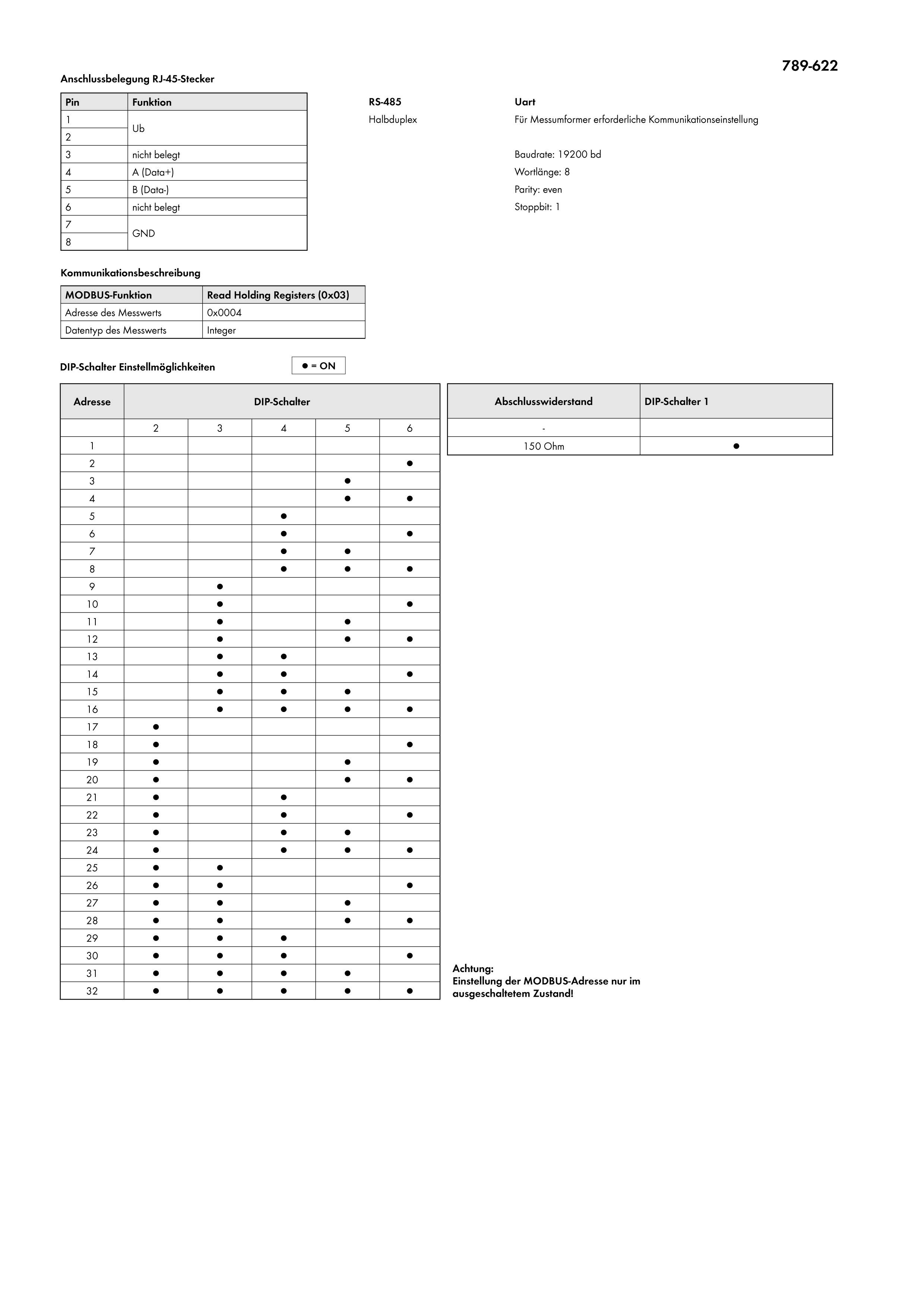

- RS-485 interface
- Transmission channels: half-duplex, 8 bit data, 1 stop bit
- Data transfer rate up to 19200 baud
- Product type
Current sensor
- Type
789-622
- Connection
RJ45
- Min. operating voltage
12 V DC
- Max. operating voltage
34 V DC
- Operating voltage
12 - 34 V DC
IP20
- Min. temperature
-20 °C
- Max. temperature
+70 °C
- Width
35 mm
- Height
55 mm
- Length
90 mm
- Dim
(L x W x H) 90 x 35 x 55 mm
- Content
1 pc(s)
- Type
789-622
Documents & Downloads
Datasheet
Datasheet 641062 WAGO Current sensor 1 pc(s) 789-622 12 - 34 V DC IP20
User & Safety Instructions
User & Safety Instructions 641062 WAGO Current sensor 1 pc(s) 789-622 12 - 34 V DC IP20
Description
Intelligent power sensor for monitoring of alternating currents.
