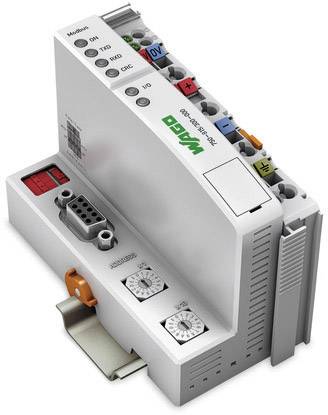

WAGO MODBUS RS485 115.2kBd PLC controller 750-815/325-000 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
PLC controller
- Interfaces
Modbus RTU
- Type
MODBUS RS485 115.2kBd
- No. of inputs (max.)
64
- No. of outputs (max.)
64
- Operating voltage
24 V DC
- Height
71.1 mm
- Length
100 mm
- Width
50.5 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
- Dim
(L x W x H) 100 x 50.5 x 71.1 mm
- Display
No
- Manufacturer part #
750-815/325-000
- Transfer rate
115200 Bit/s
- Weight
187.871 g
- Connection
Push-fit
- Factory colour
Light grey
- Mounting type
DIN rail
- Series
ETHERNET
- UKCA
yes
