Schematic drawing of an electronic component with dimensions: width 91 mm (3.58 inches), height 56 mm (2.2 inches).

Schematic drawing of an electronic component with dimensions: width 91 mm (3.58 inches), height 56 mm (2.2 inches).

Grey electronic component with a green printed circuit board and multiple metal clips, likely part of an electrical cabinet.

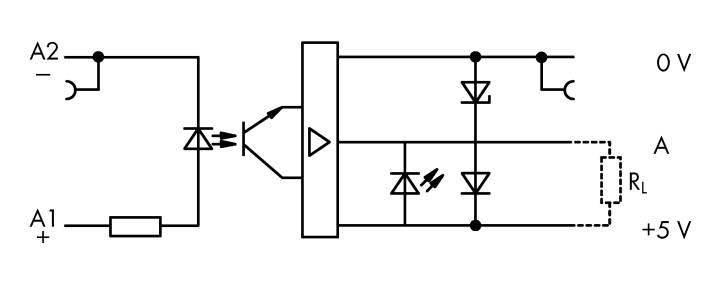

Circuit diagram of an optocoupler-based circuit that connects input A1/A2 with a diode and a transistor for controlling load RL.

1/3

Packaging type

Piece

Product type

Optocoupler relay

Type

859-706

Connection

Pull spring

Contact type

1 change-over

Datasheet (PDF)

Deutsch (Deutschland)

WAGO

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Optocoupler relay

Type: 859-706

Connection: Pull spring

Contact type: 1 change-over

Width: 6 mm

Height: 56 mm

Depth: 56 mm

Length: 91 mm

Weight: 19.861 g

Content: 1 pc(s)

Factory colour: Grey

Nominal voltage: 24 V DC

Switching current (max.): 500 mA

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 640845 WAGO Optocoupler relay 859-706 1 pc(s)

User & Safety Instructions

User & Safety Instructions 640845 WAGO Optocoupler relay 859-706 1 pc(s)
