Schematic drawing of an electronic component with dimensions: width 91 mm (3.58 inches), height 56 mm (2.2 inches).

Schematic drawing of an electronic component with dimensions: width 91 mm (3.58 inches), height 56 mm (2.2 inches).

Electronic component with a green circuit board and grey housing. Contains metal terminals and electronic components.

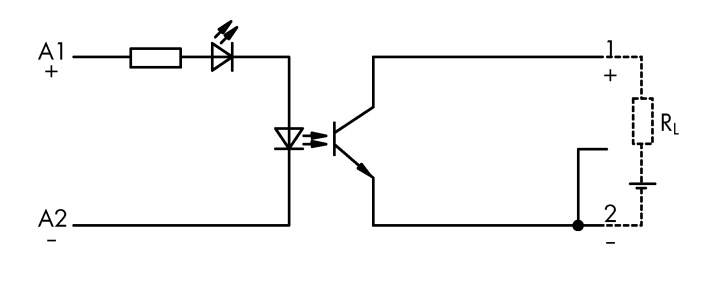

'Circuit diagram with LED, resistor, transistor and load resistor. The circuit shows the connection between power source, LED and RL.'

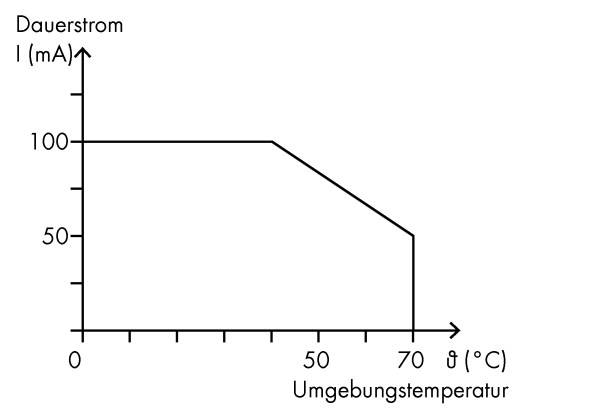

'Diagram shows the relationship between ambient temperature (x-axis) and continuous current I (mA) (y-axis). Current drops significantly above 50°C.'

1/4

Product type

Optocoupler relay

Type

859-794

Connection

Pull spring

Width

6 mm

Height

56 mm

Datasheet (PDF)

Deutsch (Deutschland)

WAGO

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Optocoupler relay

Type: 859-794

Connection: Pull spring

Width: 6 mm

Height: 56 mm

Length: 91 mm

Weight: 18.3 g

Content: 1 pc(s)

Factory colour: Grey

Nominal voltage: 24 V DC

Switching current (max.): 100 mA

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 640839 WAGO Optocoupler relay 859-794 1 pc(s)

User & Safety Instructions

User & Safety Instructions 640839 WAGO Optocoupler relay 859-794 1 pc(s)
