Buy WAGO PFC200 PLC controller 750-8212 1 pc(s)

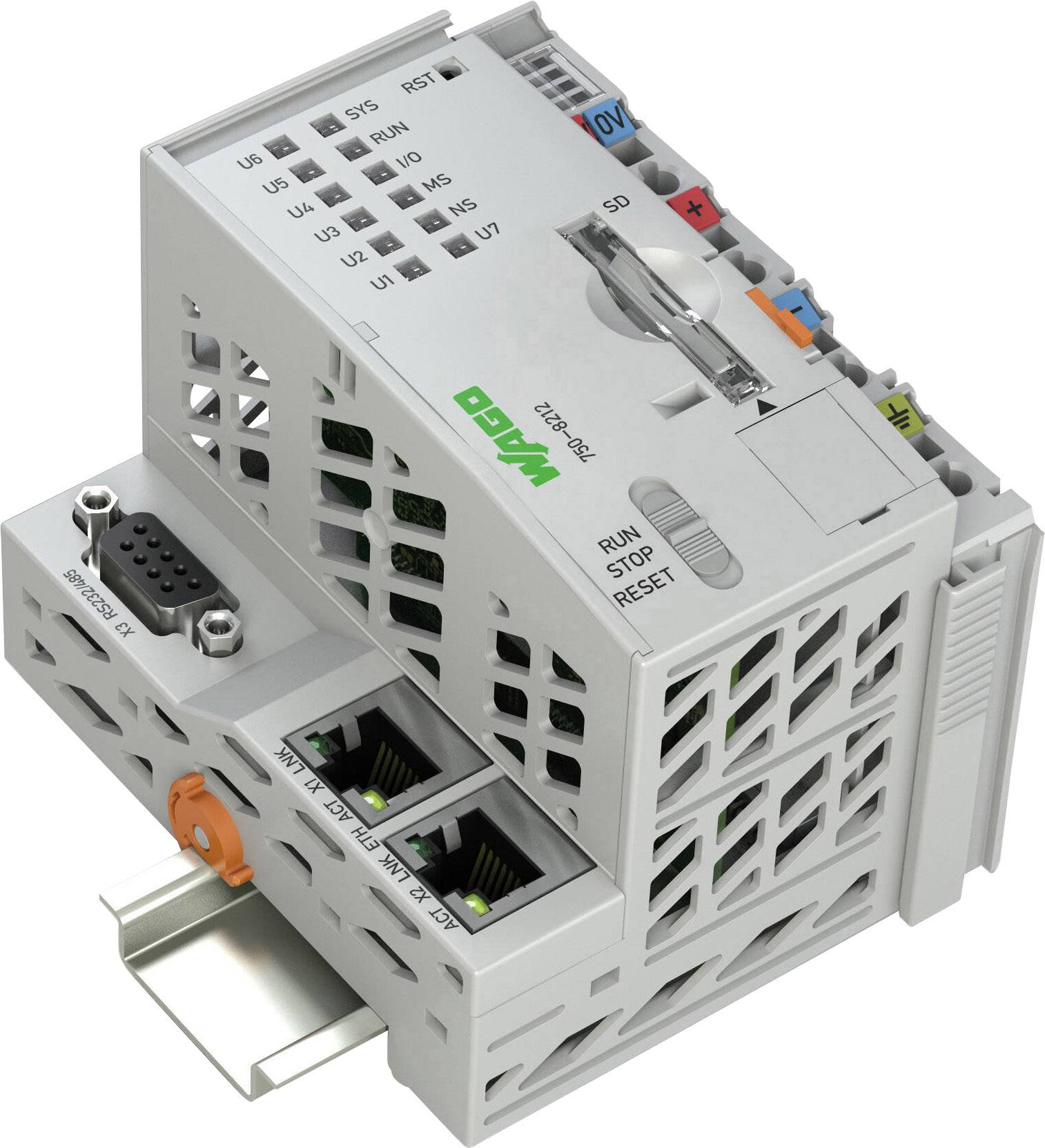

'A WAGO I/O controller, mounted on a DIN rail, with Ethernet and serial interfaces, suitable for industrial automation.'

'Electronic module with serial interface, SD card slot and multiple connections for power supply and data transmission.'

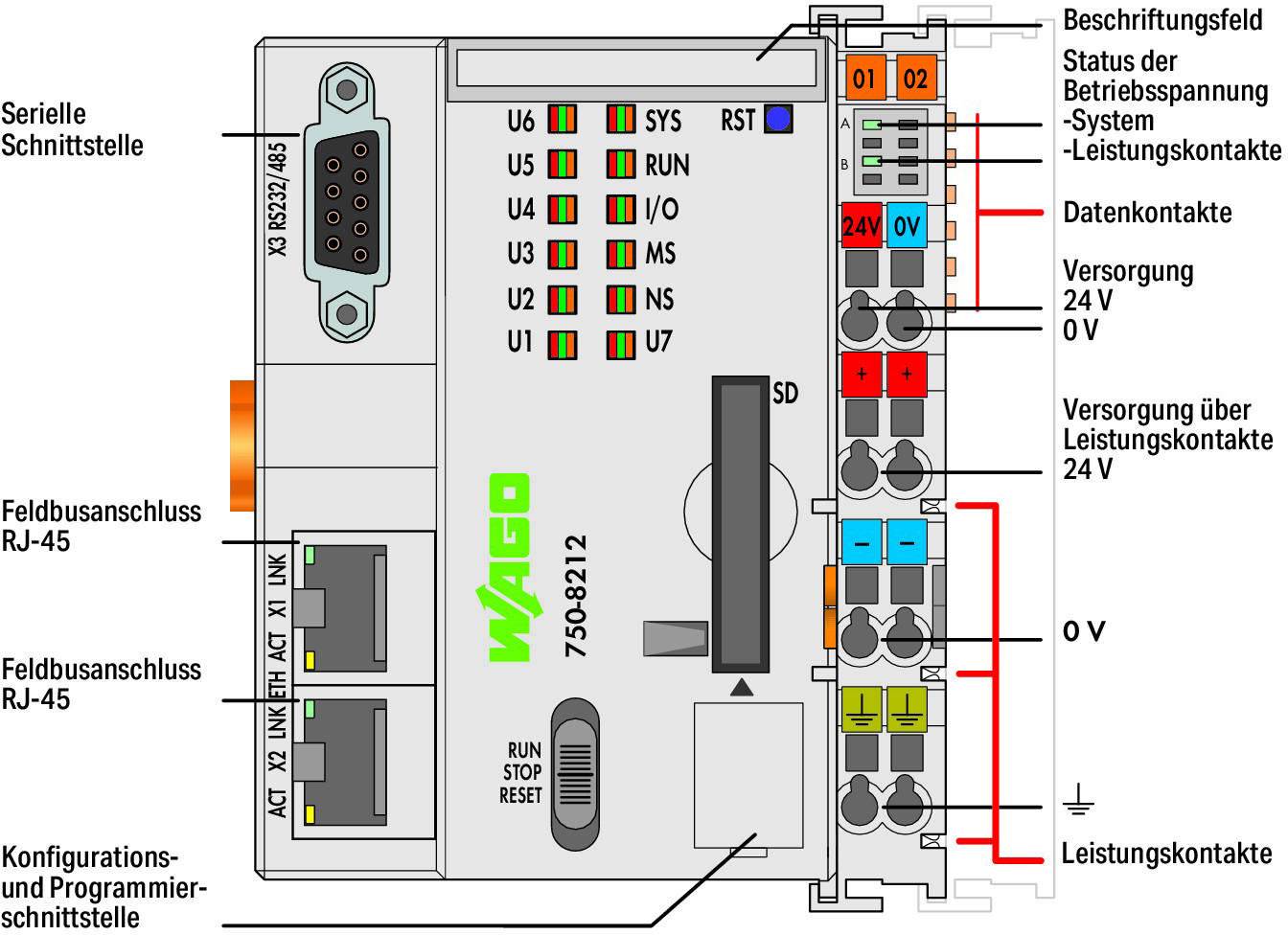

Module with labels: serial interface, fieldbus connections, power and control system displays. Lights indicate operational and error messages.

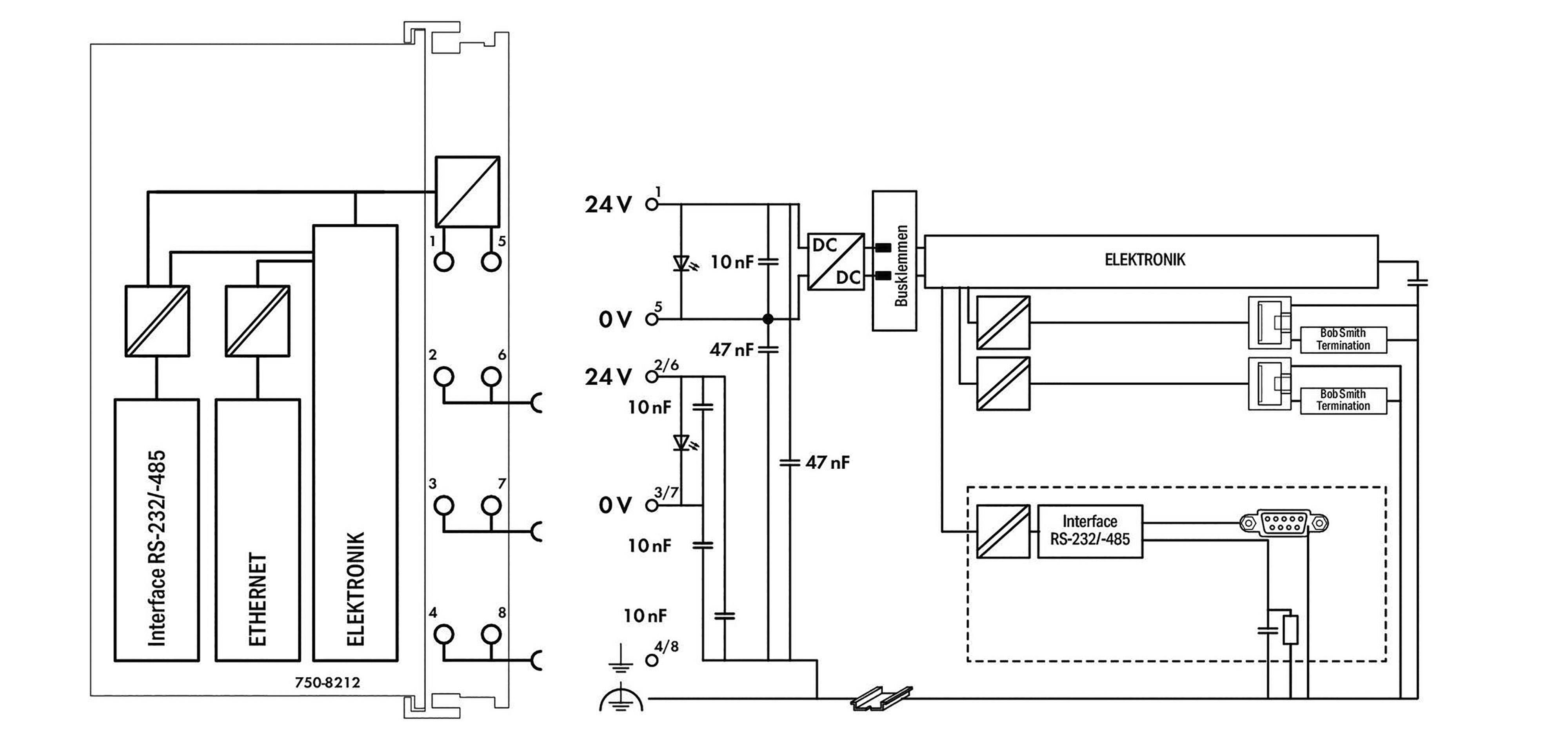

Diagram of an electronic circuit with RS-232/485 interfaces and Ethernet, showing connection to power supply and components.

1/4

Datasheet (PDF)

Unavailable

9 Piece(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Housing material: Polycarbonate, polyamide 6.6

Product type: PLC controller

Interfaces: Modbus RTU
RS 232
RS 485
Ethernet/IP adapter (slave), e!RUNTIME library
EtherCat
MQTT

Type: PFC200

Operating voltage: 24 V DC

Height: 71.90 mm

Length: 100 mm

Width: 78.60 mm

Max. ambient temperature: +55 °C

Min. ambient temperature: 0 °C

: IP20

Dim: (L x W x H) 100 x 78.60 x 71.90 mm

Display: No

Manufacturer part #: 750-8212

Weight: 213.688 g

No. of modules per node: 250

No. of modules without bus extension (max.): 64

No. of relay outputs (max.): 3

Factory colour: Light grey

Mounting type: DIN rail

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2194789 WAGO PFC200 PLC controller 750-8212 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2194789 WAGO PFC200 PLC controller 750-8212 1 pc(s)

Description

The PFC200 controller is a compact controller on the modular WAGO I/O SYSTEM. In addition to the network and fieldbus interfaces
It supports digital and analogue modules as well as special modules of the series 750/753.

The two ETHERNET interfaces and the integrated switch enable the wiring in line topology.

An integrated web server provides the user with configuration options and status information via the PFC200.

Typical applications for the PFC200 are found in the field of classical, in addition to the process industry and building automation
Machine and plant construction, such as in packaging, filling, textile, manufacturing, metal and wood processing machines or plants.

Programmable according to IEC 61131-3

· Programmable with WAGO-I/O-PRO V2.3 or e!COCKPIT
· Direct connection of WAGO I/O modules
· 2 x ETHERNET (configurable), RS-232/-485
· Linux operating system with RT preemption patch
· Configuration with CODESYS, e!COCKPIT or Web-based management interface
· Maintenance free
