WAGO Pin strip (standard) 300 Total number of pins 2 Contact spacing: 5.08 mm 231-632/019-000 100 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 234.45 / piece)
€
Highlights & Details
Male connector
- Content: 100 pc(s)
- No. of rows: 1
- Total number of pins: 2
Technical specifications
- Male Connector C.C.W. FLANGE 5,08MM
- Connector type
Plug, straight
- Connector system
wire-to-board
- Series
300
- CS
5.08 mm
- Pins per row
2
- Total number of pins
2
- Pin shape
Square
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
100 pc(s)

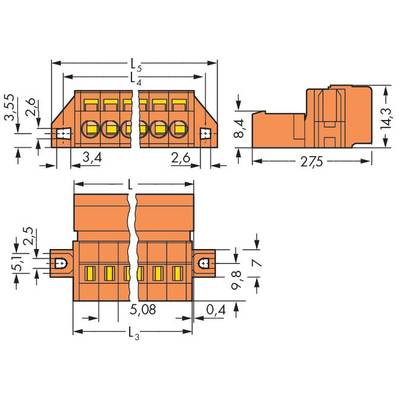

- Dim
(L x W x H) 27.5 x 24.96 x 14.3 mm
- Factory colour
Orange
- Height
14.3 mm
- Length
27.5 mm
- Width
24.96 mm
- Industrial packaging
Yes
- Connection
Spring-loaded terminal
- Connector contact surface
Tin plated
- Board contact surface
Tin plated
- Connector orientation
Parallel (to the PCB)
- Manufacturer part #
231-632/019-000
- Type
WAGO GmbH & Co. KG
- Nominal voltage
320 V
- AWG max.
12
- AWG (min.)
28
- max. cross section
2.50 mm²
- Insulation material
Polyamide
- No. of rows
1
- Contact material
Cathode copper
- Min. cross section
0.08 mm²
- Case material
Polyamide
- Max. temperature
+100 °C
- Min. temperature
-60 °C
- Product type
Pin strip (standard)
