Electrical terminal blocks in various configurations, with a mounted block at the top featuring numbered connections and colour markings.

Electrical terminal blocks in various configurations, with a mounted block at the top featuring numbered connections and colour markings.

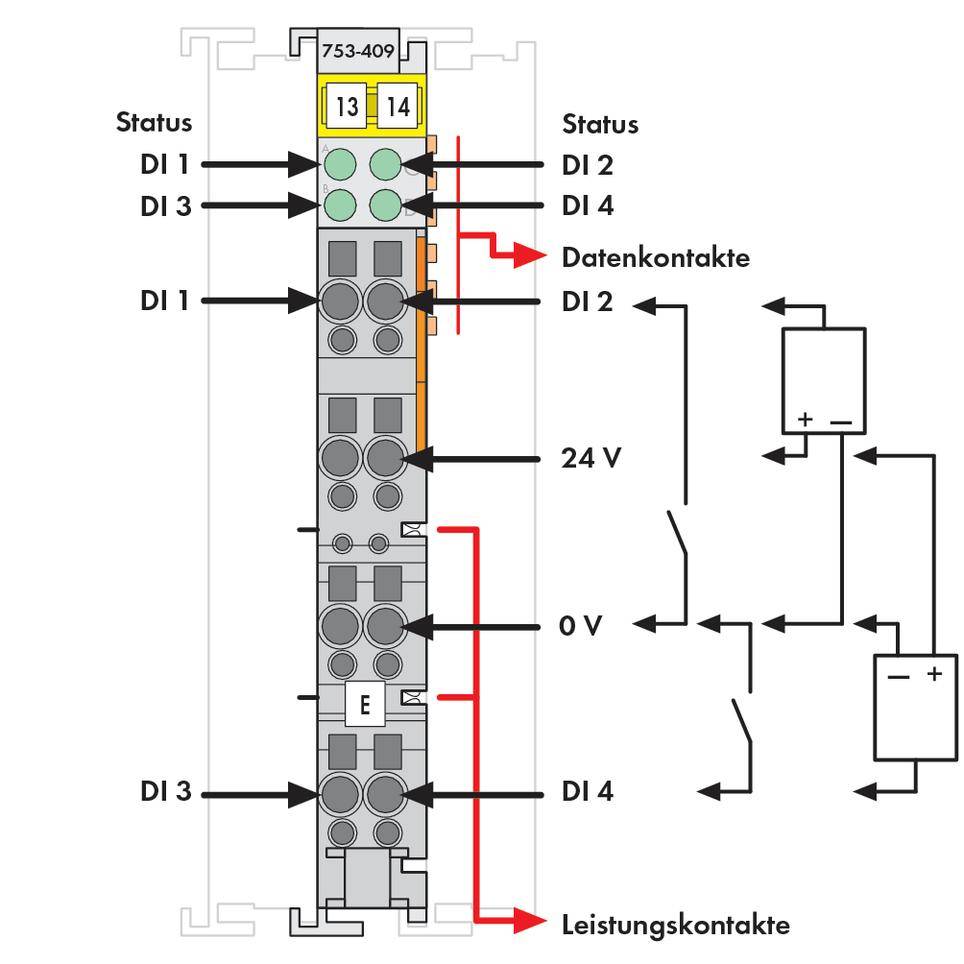

'Wiring Diagram of Terminal: Data Contacts for Status Indicators from DI1 to DI4 and Current Circuits with 24V and 0V. Model 753-409.'

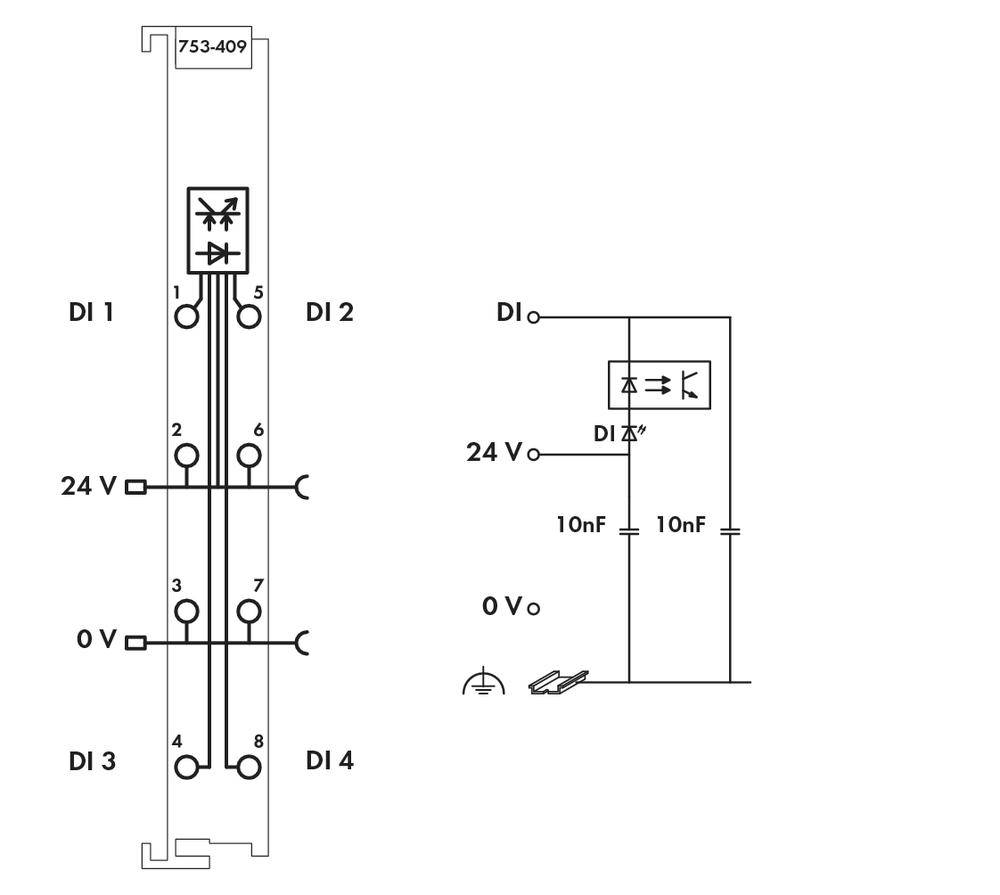

'Schematic representation of an electrical circuit diagram: On the left, a module (753-409) with four inputs (DI1 to DI4) and connections for 24V and 0V. On the right, a circuit with connections to DI2, resistors (10nF) and a switch.'

1/3

WAGO

Datasheet (PDF)

Dispatches on Thu, 29 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 48.73 / piece)

€ 48.73

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

4DI 24V DC 0,2ms Neg.

Product type: PLC digital input module

Type: 753-409

No. of digital inputs (max.): 4

Operating voltage: 24 V DC

Height: 64 mm

Length: 100 mm

Width: 12 mm

Max. ambient temperature: +55 °C

Min. ambient temperature: 0 °C

: IP20

Dim: (L x W x H) 100 x 12 x 64 mm

Manufacturer part #: 753-409

Weight: 42.5 g

Factory colour: Light grey

Mounting type: DIN rail

Inputs / outputs: Inputs: 4

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 192137 WAGO 753-409 PLC digital input module 753-409 1 pc(s)

User & Safety Instructions

User & Safety Instructions 192137 WAGO 753-409 PLC digital input module 753-409 1 pc(s)

Description

24 V DC, 02 ms, negative switch, 2-conductor connection, light gray.

This text is machine translated.
