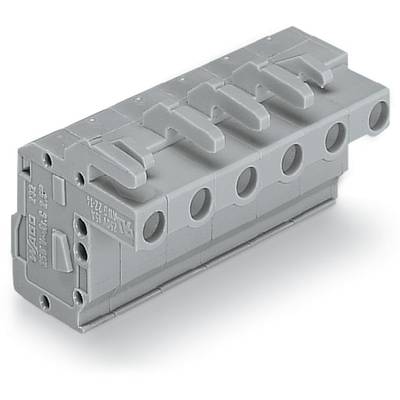

WAGO Socket housing cable 732 Total number of pins 11 Contact spacing: 7.50 mm 732-111/026-000 25 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number (Package size 25 pc(s))
Total (€ 8.57 / piece)
€
Highlights & Details
Angled female connector
- Content: 25 pc(s)
- No. of rows: 1
- Total number of pins: 11
Technical specifications
- GREY PLUG-RT ANGLE EXT LATCH 7.5MM
- Connector type
Socket, right angle
- Connector system
wire-to-board
- Series
732
- CS
7.50 mm
- Pins per row
11
- Total number of pins
11
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Content
25 pc(s)

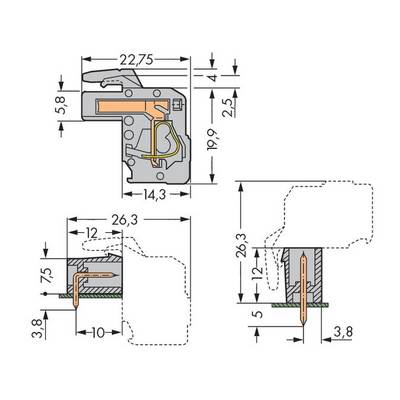

- Dim
(L x W x H) 22.75 x 82.40 x 23.90 mm
- Factory colour
Grey
- Height
23.90 mm
- Length
22.75 mm
- Width
82.40 mm
- Industrial packaging
Yes
- Connection
Spring-loaded terminal
- Connector contact surface
Tin plated
- Manufacturer part #
732-111/026-000
- Type
WAGO GmbH & Co. KG
- Nominal voltage
630 V
- AWG max.
12
- AWG (min.)
28
- max. cross section
2.5 mm²
- Stripping length (max.)
9.00 mm
- No. of rows
1
- Contact material
Copper alloy
- Min. cross section
0.08 mm²
- Case material
PA 66
- Product type
Socket housing cable
Documents & Downloads
Datasheet
Datasheet 543122 WAGO Socket housing cable 732 Total number of pins 11 Contact spacing: 7.50 mm 732-111/026-000 25 pc(s)
User & Safety Instructions
User & Safety Instructions 543122 WAGO Socket housing cable 732 Total number of pins 11 Contact spacing: 7.50 mm 732-111/026-000 25 pc(s)
Description
11-pole, pitch 7.5 mm/0.295 in, coding, head of departure for wave side of the pin strip, with 2 latching jacks, gray.
