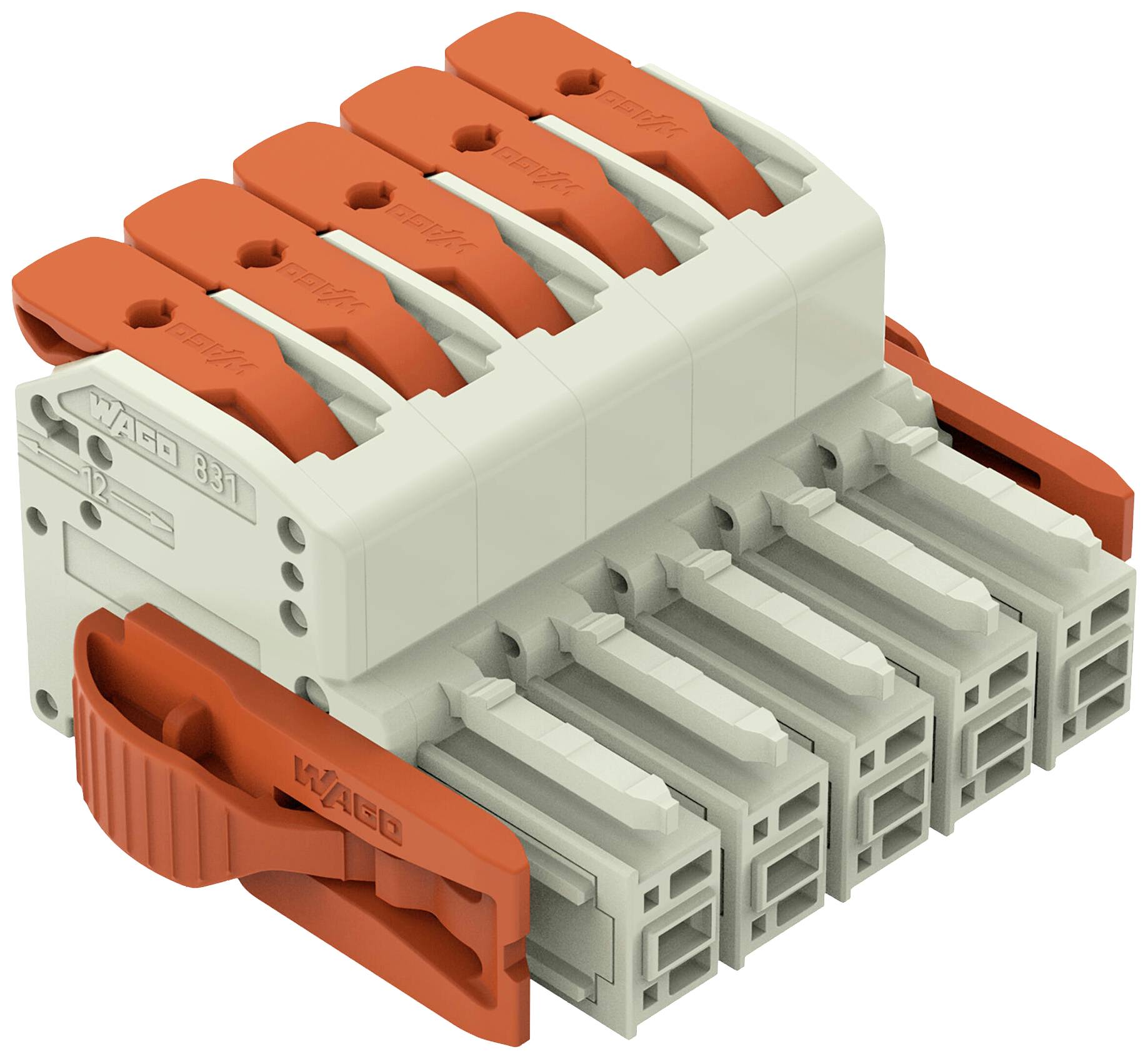

WAGO Socket housing cable Contact spacing: 7.62 mm 831-1105/038-000 12 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing cable
CS
7.62 mm
Features
+ lever
Width
64.00 mm
Nominal current
41 A
Highlights & Details
1-conductor terminal block; lever; push-in CAGE CLAMP®; 10 mm²; pitch 7.62 mm; 5-pin; 100% mismating protected; lateral locking latches; 10.00 mm²; light gray
- Content: 12 pc(s)
Technical specifications
- Single-wire conductor min. AWG 20
- Fine wire conductor max. AWG: 8
- Product type
Socket housing cable
- Features
+ lever
- CS
7.62 mm
- Width
64.00 mm
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Content
12 pc(s)
- Stripping length (max.)
13 mm

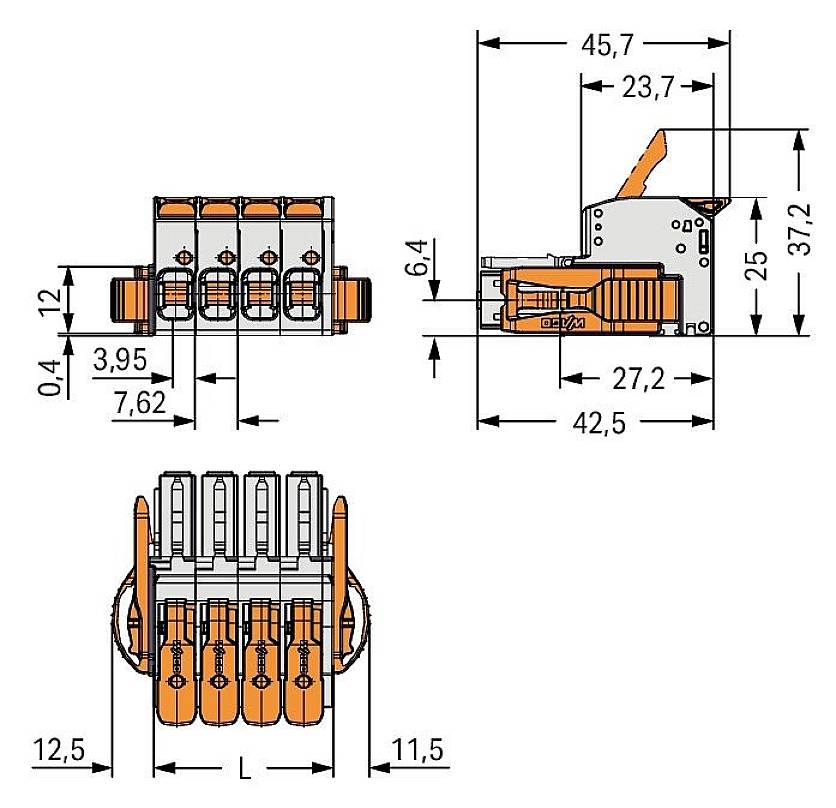

- Dim
(L x W) 45.70 mm x 64.00 mm
- Connection
Spring-loaded heavy duty connector
- Manufacturer part #
831-1105/038-000
- Factory colour
Light grey
- Nominal voltage
1000 V
- Length
45.70 mm
- Type
831-1105/038-000
- Cross section (flexible) (max.)
10 mm²
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.50 mm²
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2624978 WAGO Socket housing cable Contact spacing: 7.62 mm 831-1105/038-000 12 pc(s)
