Wallair ICON 150 Wall and ceiling fan 230 V 118 m³/h 15 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
14-day return policy included
Highlights & Details
WALL- AND CEILING FAN ICON 30 150 MM
- Standard, iris shutter
Technical specifications
- Protection class IP X4
- Product type
Wall and ceiling fan
- Nominal voltage
230 V
30 W
- Rotational speed
2570 U/min
- Air flow rate
118 m³/h
- Suitable for pipe Ø
15 cm
- Noise emission (max.)
35 dB
- Factory colour
White

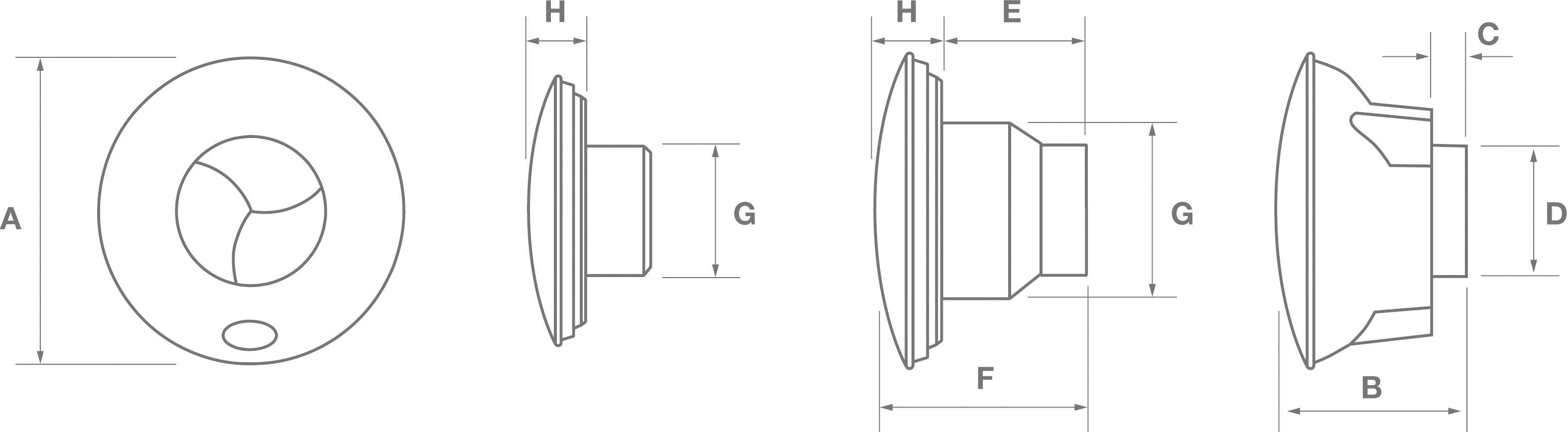

- Dim
(Ø x H) 22.5 cm x 14.5 cm
- Weight
1.11 kg
- Height
14.5 cm
- (Ø)
22.5 cm
- Type
iCON 150
- Output (max.) (details)
118 m³/h
- Max. noise generation
35 dBa
- Max. power consumption
30 W
Documents & Downloads
Datasheet
Datasheet 560432 Wallair ICON 150 Wall and ceiling fan 230 V 118 m³/h 15 cm
User & Safety Instructions
User & Safety Instructions 560432 Wallair ICON 150 Wall and ceiling fan 230 V 118 m³/h 15 cm
Description
The iCON fan combines elegant design with power. The special feature is the soft working, unique "Iris" closure, thereby avoiding unwanted draft. Ideally suited for bathrooms, toilets and toilets. With the various optional control modules (TM = Trail Relay module 56 04 33, HTM Humidity Module = 56 04 34, PRHTM = IR, humidity and cooling relay 56 04 35) they have for several applications for the best solution. The device is protected against splash water and purified by the bayonet locking lid easily.
Scope of delivery
- Wall and Ceiling Fans
- Aperture for surface mounting
- User manual.
