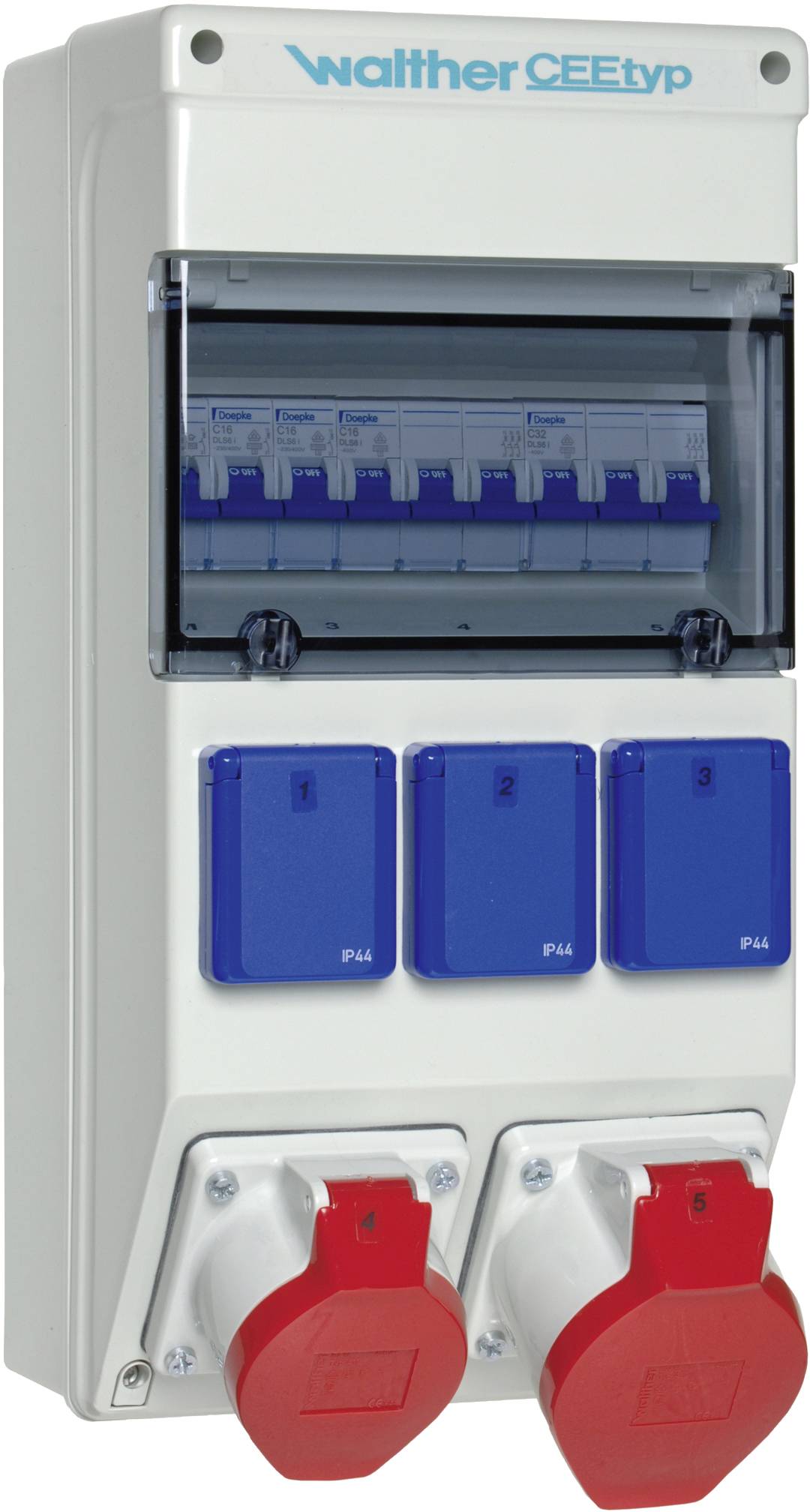

Walther Werke CEE power distributor 6983001 6983001
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 410.92 / piece)
€ 491.60
-16 %
€ 410.92
plus VAT.
Highlights & Details
Socket combination in: 63A m 5 MCB
- Housing (698) made of silicon and halogen-free PC/ABS
- With transparent lid that snaps into place on top
- II protection rating
- Flammability class V0
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
2
- No. of PG sockets
3
- Inputs
3
- Outputs
5
- Nominal output voltage
400 V
IP44
- Factory colour
Grey-white (RAL 7035)
- Weight
4 kg
- Dim
(L x W x H) 370 x 183 x 370 mm
- Length
370 mm
- Width
183 mm
- Height
370 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 63 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
152 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2305612 Walther Werke CEE power distributor 6983001 6983001
User & Safety Instructions
User & Safety Instructions 2305612 Walther Werke CEE power distributor 6983001 6983001
Description
Socket combination in: 63A with 5 MCB type C, 2 CEE outputs 16-32A, 3 Schuko and terminal set K25 10P
This text is machine translated.
This text is machine translated.
Features
- Connection:
- 2 knockouts at top and bottom M25/M32/M40
- 1 clamping set K25 10P
- outputs/ protection:
- 1 straight CEE-mounted socket 32A 5P 400V 6h
- with miniature circuit breaker (MCB) 3P 32A -C-
- 1 straight CEE-mounted socket 16A 5P 400V 6h
- with miniature circuit breaker (MCB) 3P 16A -C-
- 3 protective contact sockets 16A 3P 230V
- each with 1 circuit breaker (MCB) 1P 16A -C-
Hints
Fuse for LS switch
