Weber Hydraulik Hydraulic toe jack 12 t Working height: 49.7 cm (max)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity
12 t
- Product type
Hydraulic toe jack
- Operating height (max.)
49.7 cm
- Dim
(L x W x H) 12 x 13.4 x 23 cm
- Content
1 pc(s)
- Weight
7.1 kg
- Width
13.4 cm
- Height
23 cm
- Length
12 cm
- C
15.7 cm
- F
134 x 120 mm
- Lifting height
49.7 cm
- A
23 cm
- B
11 cm
- D
49.7 cm
- E
48 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 842399 Weber Hydraulik Hydraulic toe jack 12 t Working height: 49.7 cm (max)
Description
The standard models feature with a piston and the adjustment spindle.
This text is machine translated.
This text is machine translated.
Features
- Balliges Pump Housing
- Safety valve
- Horizontal use
- Pump lever can be locked
- Various forms of support cover, lever holder
- Temperature range -20°C to 70°C
- Different standards
- Proof of technical challenges BWB.

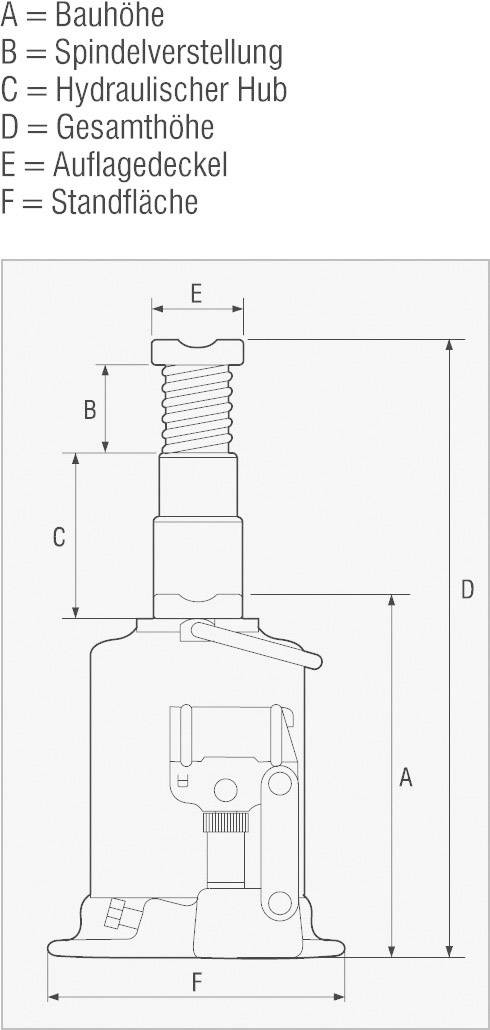

- A = height
- B = spindle adjustment
- C = hydraulic hub
- D = Total height
- E = rest cover
- F = stand area.
