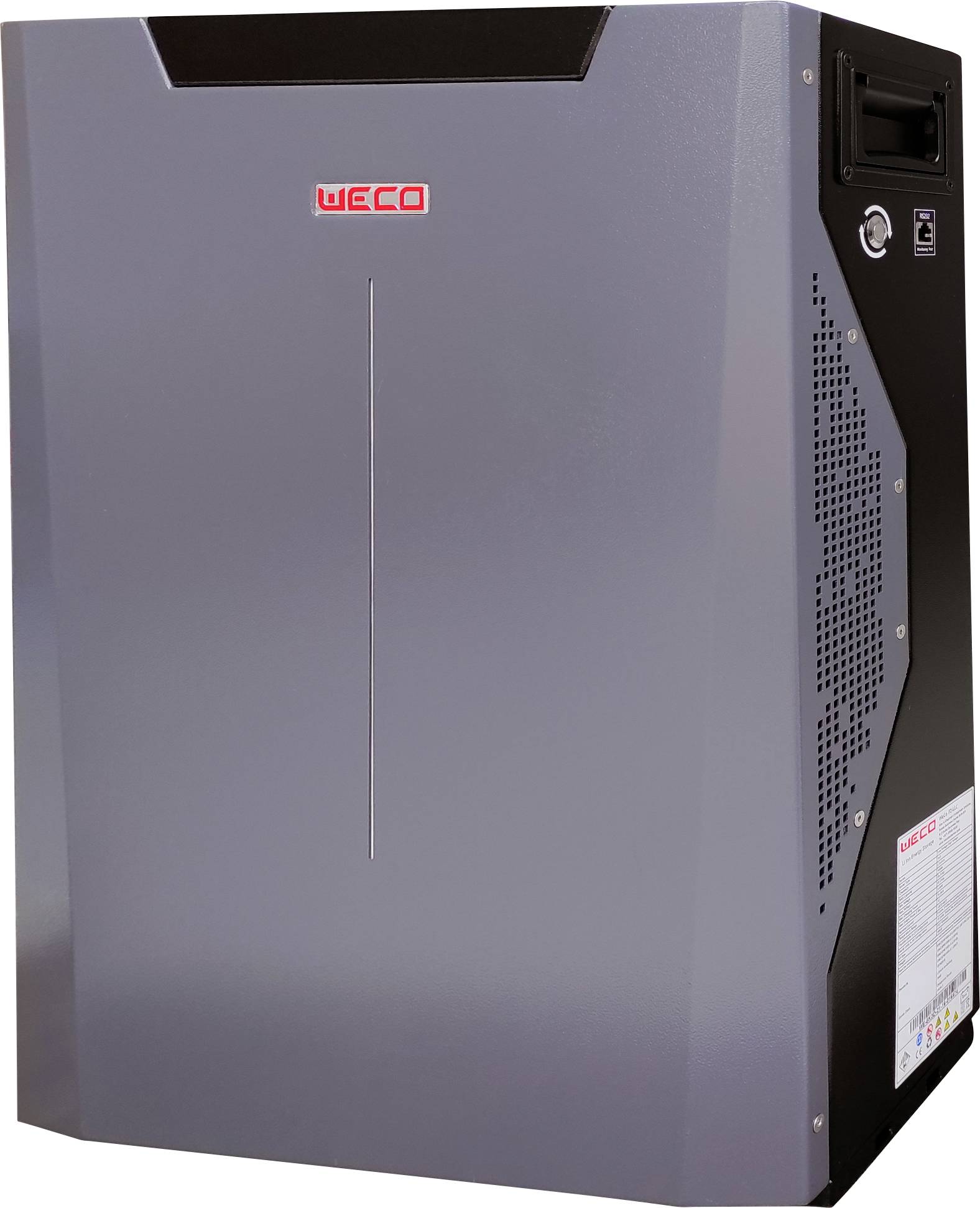

Weco Non-standard battery (rechargeable) LiFePO4 48 V DC 100 Ah 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Battery lithium Weco 5K3 XP
- WECO APP (Android / iOS)
- Real-time balancing, adaptive charge/discharge logic
- RS485, CAN, RS232, Wi-Fi & Bluetooth communication
- Expected cycle life: More than 7000 cycles at 80% DoD
- -20 ~ +65 °C (BMS working temperature)
- Up to 15 batteries in parallel
Technical specifications
- 5200 Wh
- Voltage range 50.5...56.0 VDC
- Cycles 7000
- Interface (CAN, RS232, RS485, Bluetooth, WiFi)
- IP20
- Series/parallel connection LV 1S15x7P / HV 16S10P
- stackable
- HV kit
- Product type
Non-standard battery (rechargeable)
- Technology
LiFePO4
- Dim
(W x H) 593 mm x 163 mm
- Voltage
48 V DC
- Capacity (mAh, Ah)
100 Ah
- Max. charging current
100 A
- Discharge current (max.)
100 A
- Min. temperature
-20 °C
- Max. temperature
65 °C
- Width
593 mm
- Height
163 mm
- Weight
57.3 kg
- Content
1 pc(s)
- Type
B00010
- Rechargeable
Yes
Documents & Downloads
Datasheet
Datasheet 3451195 Weco Non-standard battery (rechargeable) LiFePO4 48 V DC 100 Ah 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3451195 Weco Non-standard battery (rechargeable) LiFePO4 48 V DC 100 Ah 1 pc(s)
Information
Test Summary Report 3451195 Weco Non-standard battery (rechargeable) LiFePO4 48 V DC 100 Ah 1 pc(s)
Security datasheet
Security datasheet 3451195 Weco Non-standard battery (rechargeable) LiFePO4 48 V DC 100 Ah 1 pc(s)
Description
The WECO battery provides a powerful and reliable energy source with a capacity of 5.37 kWh and a nominal voltage of 51.2 Vdc. With the possibility of switching up to 15 modules in parallel, it is suitable for Ideal scalable applications and offers a high flexibility in use. Thanks to IP20 protection, the battery is designed for indoor use and provides optimum protection against dust and moisture.
The battery features a rapid charge and discharge rate with a maximum charge and discharge current of up to 1C. The life of the battery is impressive, with over 7000 cycles at 80% DoD, WAS guarantees a long term and reliable use.
The battery has several communication interfaces for easy integration and control, including RS485, CAN, RS232 as well as integrated Wi-Fi and Bluetooth. This allows easy remote monitoring and control via the WECO APP for Android and iOS. In addition, the battery offers real-time balancing and adaptive charge/discharge logic that ensures efficient use.
The WECO battery is equipped with a variety of safety features, including overload protection, deep discharge protection and temperature monitoring to ensure safe use under various conditions. With a wide operating temperature range from -20°C to +65°C, the battery is also suitable for demanding applications.
Thanks to its flexible expandability, robust design and modern features, the WECO battery is an ideal choice for demanding energy storage solutions.
This text is machine translated.
The battery features a rapid charge and discharge rate with a maximum charge and discharge current of up to 1C. The life of the battery is impressive, with over 7000 cycles at 80% DoD, WAS guarantees a long term and reliable use.
The battery has several communication interfaces for easy integration and control, including RS485, CAN, RS232 as well as integrated Wi-Fi and Bluetooth. This allows easy remote monitoring and control via the WECO APP for Android and iOS. In addition, the battery offers real-time balancing and adaptive charge/discharge logic that ensures efficient use.
The WECO battery is equipped with a variety of safety features, including overload protection, deep discharge protection and temperature monitoring to ensure safe use under various conditions. With a wide operating temperature range from -20°C to +65°C, the battery is also suitable for demanding applications.
Thanks to its flexible expandability, robust design and modern features, the WECO battery is an ideal choice for demanding energy storage solutions.
This text is machine translated.
