WEDICO-models 2350-W 1:14 Lighting 1 pc(s)

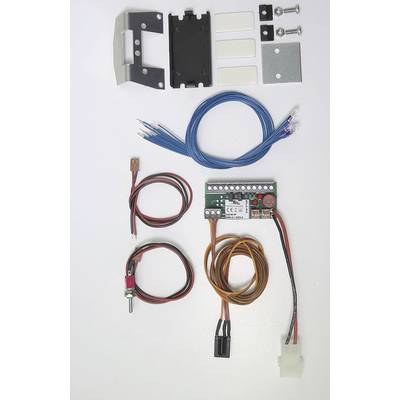

Very compact lighting system with infrared receiver.The trailer lighting system MFL-A is suitable for all trailers and trailers in the scale 1:14 and 1:16. The MFL No.: 2288-W must be installed in the tractor. With the MFL-A, the light functions of the MFL are received via infrared signal and transferred to the corresponding illuminants. The MFL-A requires its own power supply and can be operated with LiPo, LiIo and NiMH batteries of 7.2-13.5V.3mm bulbs are included in the delivery, which fit in all WEDICO models. LEDs can also be connected.Since the light board is only 45x23mm large, it fits practically invisibly to the outside in every trailer/trailer model.Functions:8 functions transferred with IR from MFL truck control:6 light functions:Left turn signal max. 100mARight turn signal max. 100mARear light max. 100mAReversing light max. 100mARear fog light max. 100mABrake light max. 100mALight functions are operated with 6V and are protected with the 500mA fuse2 switching functions with IR transferred from MFL truck control:Function 1 max. 1aFunction 2 max. 1aSwitching functions are each short-circuit-proof with 1A.Special function SF1/SF2Here, 2 consumers with a max. power OF 1a, such as light bulbs, can be switched on/off directly.However, the WEDICO add-on modules can also be:MFL-U pole board for engines up to 30A No.: 2354-W.MFL-S servo board for controlling a servo No.: 2356-W can be used!

This text is machine translated.
