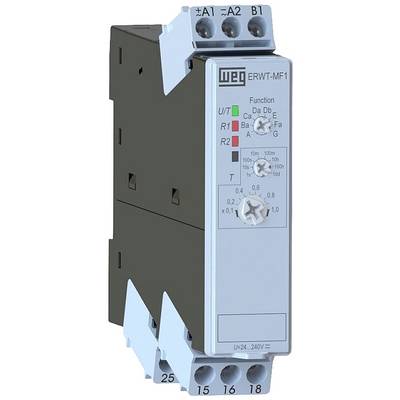

WEG 11593741 ERWT-MF1-02MT1E05 Multifunction timer Multifunction 1 pc(s) Time range: 0.1 s - 10 d 2 breakers, 2 makers
EAN:
Part number:
Item no:
Product type
Multifunction timer
Type
Multifunction
Functions
On-delay
Single-shot leading-edge
Star delta TDR
Single shot trailing edge with auxiliary contact
On-/Off-delay with auxiliary contact
Flasher, pulse OFF
Flasher, asymmetric, pulse ON
Off-delay with auxiliary contact
Contact type
2 breakers
2 makers
Type
ERWT-MF1-02MT1E05
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
14-day return policy included
Technical specifications
- Product type
Multifunction timer
- Type
ERWT-MF1-02MT1E05
- Type
Multifunction
- Functions
On-delay
Single-shot leading-edge
Star delta TDR
Single shot trailing edge with auxiliary contact
On-/Off-delay with auxiliary contact
Flasher, pulse OFF
Flasher, asymmetric, pulse ON
Off-delay with auxiliary contact
- Contact type
2 breakers
2 makers
- Time range (min.)
0.1 s
- Time range (max.)
10 d
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2523085 WEG 11593741 ERWT-MF1-02MT1E05 Multifunction timer Multifunction 1 pc(s) Time range: 0.1 s - 10 d 2 breakers, 2 makers
Information
Information 2523085 WEG 11593741 ERWT-MF1-02MT1E05 Multifunction timer Multifunction 1 pc(s) Time range: 0.1 s - 10 d 2 breakers, 2 makers
Description
WEG multi-function relay, 24-240 V AC/DC, 2S/2NC, 0.1s-10d, 1Zeitbereich
Delayed pick-up (A)
Off-delay with auxiliary voltage (Ba)
Response and fall-back delayed with auxiliary voltage (Ca)
Flashing, start with on (da)
Flashing, start with off (DB)
Single shot leading edge (E)
Single shot trailing edge with auxiliary contact (Fa)
Star delta function (G)
This text is machine translated.
Delayed pick-up (A)
Off-delay with auxiliary voltage (Ba)
Response and fall-back delayed with auxiliary voltage (Ca)
Flashing, start with on (da)
Flashing, start with off (DB)
Single shot leading edge (E)
Single shot trailing edge with auxiliary contact (Fa)
Star delta function (G)
This text is machine translated.
