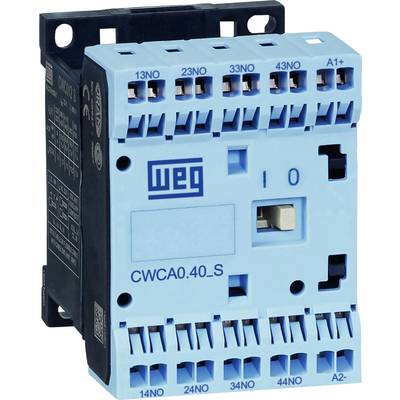

Image similar
Image similar
WEG CWCA0-04-00C03S Contactor 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
4-pin
Nominal voltage
24 V DC
Connection
Spring-loaded terminal
Type
CWCA0-04-00C03S
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Contactor
- Type
CWCA0-04-00C03S
- No. of pins
4-pin
- Auxiliary contact type
4 breakers
- Nominal voltage
24 V DC
- Switching voltage (max.)
400 V AC
- Permanent current (max.)
10 A
- Mounting type
DIN rail
- Connection
Spring-loaded terminal
- Electrical lifespan
10 x 106 switching operations
- Durability
12 x 10 6 cycles
IP20
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Width
45 mm
- Height
60 mm
- Depth
54.4 mm
- Dim
(W x H x D) 45 x 60 x 54.4 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1398482 WEG CWCA0-04-00C03S Contactor 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1398482 WEG CWCA0-04-00C03S Contactor 24 V DC 1 pc(s)
Description
Auxiliary contactor with screw-less clamp technology for control and locking tasks. It has the same structures as the power contactors. Built and tested according to IEC/EN 60947 or DIN VDE 0660, fulfills the approvals and certifications according to UL/CSA, GOST. High contact reliability in case of small voltages and currents. The base unit has 4 contacts, which can be extended to maximum 8 contacts by means of the auxiliary switch blocks mounted on the front side.
