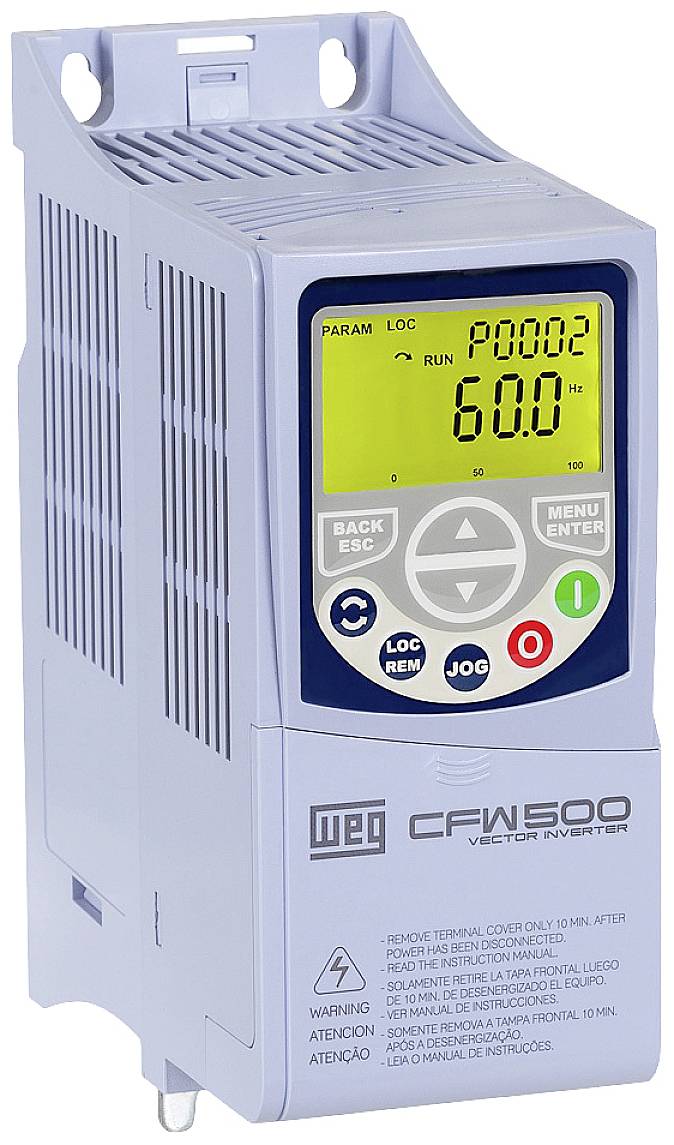

WEG Frequency inverter CFW500 A 01P6 T4 0.75 kW 3-phase 380 V, 480 V
EAN:
Part number:
Item no:
Number
Total (€ 331.93 / piece)
€ 331.93
plus VAT.
14-day return policy included
Technical specifications
- Typical motor power:
- 0.75 kW with 150% overload capacity for 60s every 10 min.
- To 1.6 A rated motor current
- With operating and monitoring module
- With integrated EMC filter, C2
- With painted circuit boards
- Size A
- Ambient conditions 1000 m.
- Operating temperature: -10°C to 40°C, 40°C for installation side by side
- Up to 60°C with current derating (2% per 1°C above 40°C)
- Documentation: 1 x German
- Power specifications referring to 3AC 400V 50Hz, 4-pole motors
- Certified to UL, CSA, CE
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
0.75 kW
- Max. frequency
60 Hz
- Min. frequency
50 Hz
- Network
3-phase
- Frequency range
50 Hz - 60 Hz
- Nominal current
1.6 A
- Depth
150 mm
- Height
190 mm
- Width
76 mm
IP20
- Type
CFW500 A 01P6 T4
- Filter class
C2
- Dim
(W x H x D) 76 x 190 x 150 mm
- Manufacturer part #
15572826
- Weight
0.8 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2523205 WEG Frequency inverter CFW500 A 01P6 T4 0.75 kW 3-phase 380 V, 480 V
Information
Information 2523205 WEG Frequency inverter CFW500 A 01P6 T4 0.75 kW 3-phase 380 V, 480 V
Description
With a modern design and a power of 0.25 to 75 CV, the CFW500 frequency converter is a high-performance variable speed drive that helps control the speed and torque of three-phase induction motors. The device offers sensorless vector, vector with encoder or scalar control modes, permanent magnet motor control, SoftPLC, the PLC (Programmable Logic Controller) functions, STO and SS1 safety functions, Pump Genius, which provides dedicated pump functions, and selectable plug-in modules that provide a flexible and optimized solution for each application.
This text is machine translated.
This text is machine translated.
Hints
Can only be used in conjunction with module:
CFW500-CPDP, CFW500-CR485, CFW500-CUSB OR CFW500-IOS
