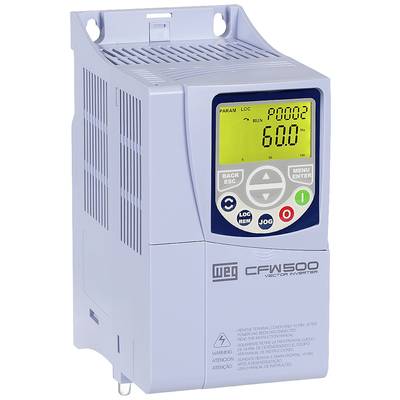

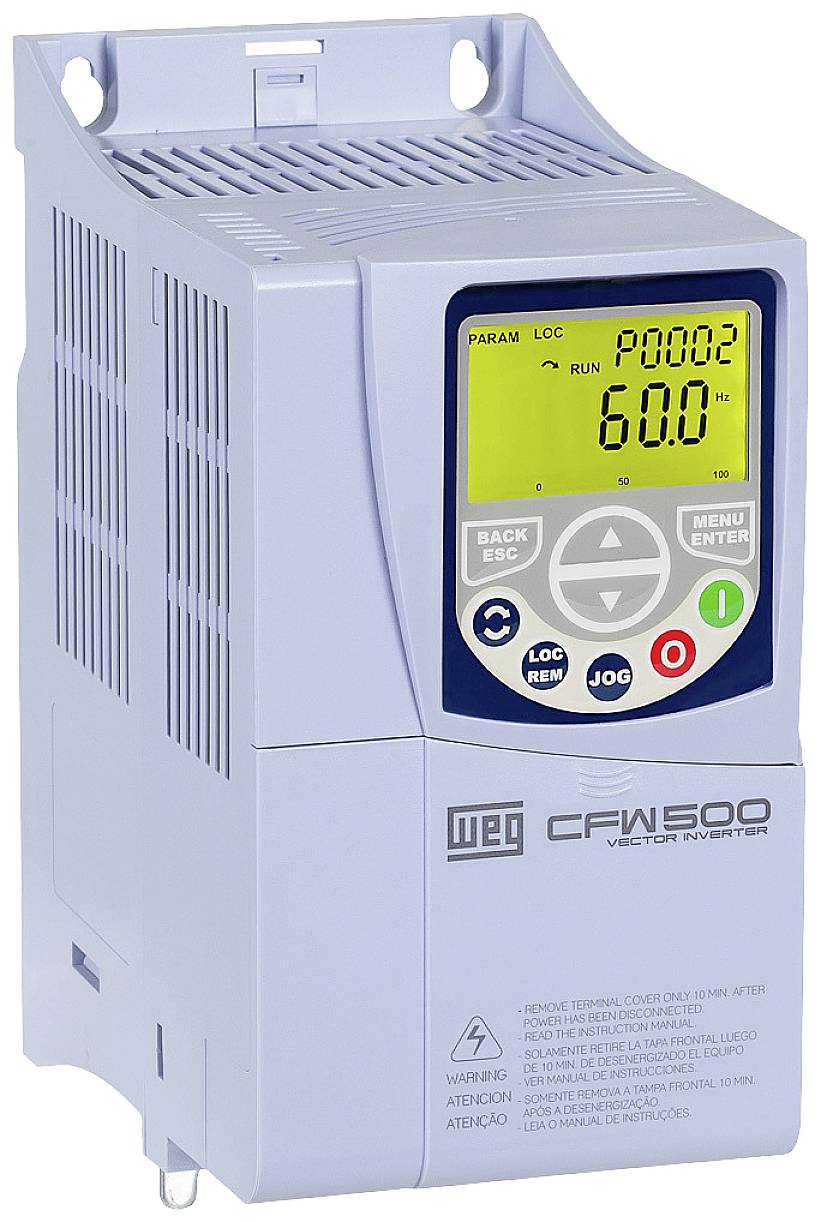

WEG Frequency inverter CFW500 B 07P3 S2 0.75 kW 1-phase 200 V, 240 V
EAN:
Part number:
Item no:
Number
Total (€ 478.15 / piece)
€ 478.15
plus VAT.
14-day return policy included
Technical specifications
- Typical engine power:
- 0.75 kW with 150% overload capability for 60s every 10 min.
- Up to 7 A rated motor current
- With operator control and monitoring module
- With integrated EMC filter, C2
- With painted printed circuit boards
- Size: B
- Environmental conditions: 1000 m.
- Operating temperature: -10°C to 40°C, 40°C for side-by-side installation
- Up to 60°C with current derating (2% per 1°C above 40°C)
- Documentation: 1 x German
- Power specifications related to 3AC 230V 50Hz, 4-pole motors
- Certified to UL, CSA, CE
- Input voltage
200 V
240 V
- Product type
Frequency inverter
- Output rating (max.)
0.75 kW
- Max. frequency
60 Hz
- Min. frequency
50 Hz
- Network
1-phase
- Frequency range
50 Hz - 60 Hz
- Nominal current
7.3 A
- Depth
161 mm
- Height
200 mm
- Width
101 mm
IP20
- Type
CFW500 B 07P3 S2
- Filter class
C2
- Dim
(W x H x D) 101 x 200 x 161 mm
- Manufacturer part #
15575109
- Weight
1.2 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2523215 WEG Frequency inverter CFW500 B 07P3 S2 0.75 kW 1-phase 200 V, 240 V
Information
Information 2523215 WEG Frequency inverter CFW500 B 07P3 S2 0.75 kW 1-phase 200 V, 240 V
Description
With a modern design and a power of 0.25 to 75 cv, the CFW500 frequency converter is a powerful variable speed speed drive that helps control the speed and torque of three-phase induction motors. The device offers sensorless vector, vector with encoder or scalar control modes, permanent magnet motor control, SoftPLC, programmable logic controller (SPS) functions, STO and SS1 safety functions, Pump Genius, which provides dedicated pumping functions, and selectable plug-in modules, which offer a flexible and optimized solution for each application.
This text is machine translated.
This text is machine translated.
Hints
Only usable in conjunction with module:
CFW500-CPDP, CFW500-CR485, CFW500-CUSB OR CFW500 IOS
