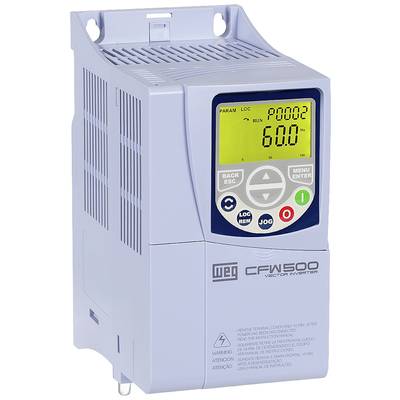

WEG Frequency inverter CFW500 D 31P0 T4 15 kW 3-phase 380 V, 480 V
EAN:
Part number:
Item no:
Number
Total (€ 1,138.66 / piece)
€ 1,138.66
plus VAT.
14-day return policy included
Technical specifications
- Typical engine power:
- 15 kW with 150% overload capability for 60s every 10 min.
- Up to 31 A rated motor current
- With operator control and monitoring module
- With integrated EMC filter, C3
- With brake transistor (IGBT)
- With painted control and power boards in accordance with class 3C2 (IEC60721-3-3)
- Size: D
- Environmental conditions: 1000 m.
- Operating temperature: -10°C to 40°C, 40°C for side-by-side installation
- Up to 60°C with current derating (2% per 1°C above 40°C)
- Documentation: 1 x German
- Power specifications related to 3AC 400V 50Hz, 4-pole motors
- Certified to UL, CSA, CE
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
15 kW
- Max. frequency
60 Hz
- Min. frequency
50 Hz
- Network
3-phase
- Frequency range
50 Hz - 60 Hz
- Nominal current
31 A
- Depth
165.2 mm
- Height
210 mm
- Width
135 mm
IP20
- Type
CFW500 D 31P0 T4
- Filter class
C3
- Dim
(W x H x D) 135 x 210 x 165.2 mm
- Manufacturer part #
15577019
- Weight
4.3 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2523263 WEG Frequency inverter CFW500 D 31P0 T4 15 kW 3-phase 380 V, 480 V
Information
Information 2523263 WEG Frequency inverter CFW500 D 31P0 T4 15 kW 3-phase 380 V, 480 V
Description
With a modern design and a power of 0.25 to 75 cv, the CFW500 frequency converter is a powerful variable speed speed drive that helps control the speed and torque of three-phase induction motors. The device offers sensorless vector, vector with encoder or scalar control modes, permanent magnet motor control, SoftPLC, programmable logic controller (SPS) functions, STO and SS1 safety functions, Pump Genius, which provides dedicated pumping functions, and selectable plug-in modules, which offer a flexible and optimized solution for each application.
This text is machine translated.
This text is machine translated.
Hints
Only usable in conjunction with module:
CFW500-CPDP, CFW500-CR485, CFW500-CUSB OR CFW500 IOS
