Buy WEG 12501028 MPW12-3-U010S Motor surge protector switch adjustable 10 A 1 pc(s)

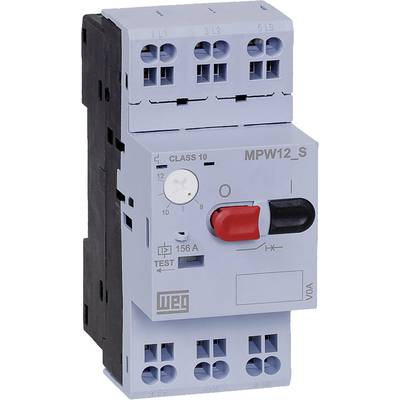

Circuit breaker with blue housing colour, red and black switch. Text: 'MPW12_S', 'CLASS 10', 'TEST', '156 A'.

Image similar

Product type

Motor surge protector switch

Switching current (max.)

10 A

Switch/button features

adjustable

Connection

Spring-loaded terminal

Switching current (min.)

6.3 A

Datasheet (PDF)

Fast track dispatch on Tue, 18 Aug

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 49.14 / piece)

€ 49.14

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Rated operating voltage: 690 V/AC

Product type: Motor surge protector switch

Switch/button features: adjustable

Connection: Spring-loaded terminal

Switching current (min.): 6.3 A

Switching current (max.): 10 A

Min. temperature: -20 °C

Max. temperature: +70 °C

: IP20

Length: 77 mm

Width: 45 mm

Height: 100 mm

Durability: 100000 cycles

Content: 1 pc(s)

Type: MPW12-3-U010S

Dim: (L x W x H) 77 x 45 x 100 mm

RoHS-compliant: Yes

Frequency: 50 Hz
60 Hz

Documents & Downloads

Datasheet

Datasheet 1398395 WEG 12501028 MPW12-3-U010S Motor surge protector switch adjustable 10 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1398395 WEG 12501028 MPW12-3-U010S Motor surge protector switch adjustable 10 A 1 pc(s)

Description

Motor protection power switch for switching and protection of engines up to 5.5 kW/415 V with screw-less clamp technology. With overload and short circuit initiation, phase failure-sensitive, temperature-compensation and short-circuit breaking capacity of 100 kA. MPW12-S and compact contactor CWC0-S are perfectly tuned to each other and can be easily to motor outlets combined. The protection switch can be equipped with front-sided (ACBF) or side (ACBS) auxiliary contacts.

This text is machine translated.
