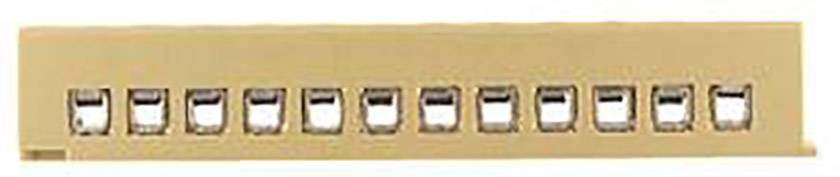

Weidmüller 0241260000 Terminal Screws Beige 50 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
Multi-pin terminal strip
Our service for you
Technical specifications
- Product type
Terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Beige
- Manufacturer part #
0241260000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MK 2/12
- Dim
(L x W x H) 86 x 15 x 15 mm
- Width
15 mm
- Height
15 mm
- Length
86 mm
- RoHS-compliant
Yes
- Weight
34.26 g
- Insulation material
Polyamide
- Type
MK 2/12
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 276895 Weidmüller 0241260000 Terminal Screws Beige 50 pc(s)
User & Safety Instructions
User & Safety Instructions 276895 Weidmüller 0241260000 Terminal Screws Beige 50 pc(s)
Description
Multi-pin terminal strip. Rated cross-section: 2.5 mm², screw connection, direct mounting. Multi-pin terminal strips are established at Weidmüller for many years. The terminal blocks can be screwed directly on the housing a re-tighten the clamp screw by setting the conductor even in these terminals is not required. The terminal blocks are in the Materials KRG and PA and with different connection techniques available.
