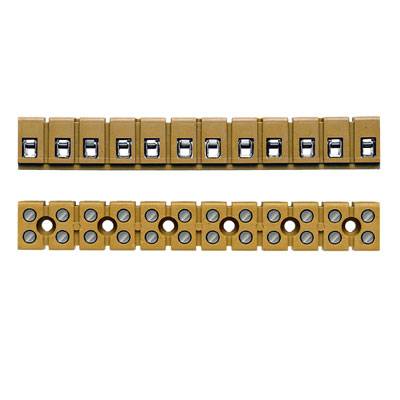

Weidmüller 0243520000 Terminal Screws Medium yellow 20 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Terminal
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details
Multi-pin terminal strip
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Medium yellow
- Manufacturer part #
0243520000
- Content
20 pc(s)
- Industrial packaging
Yes
- Type
MK 3/12
- Dim
(L x W x H) 110 x 15 x 16.1 mm
- Width
15 mm
- Height
16.1 mm
- Length
110 mm
- RoHS-compliant
Yes
- Weight
42.4 g
- Connector colour
Medium yellow
- Insulation material
Polyamide
- Type
MK 3/12
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 276904 Weidmüller 0243520000 Terminal Screws Medium yellow 20 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 276904 Weidmüller 0243520000 Terminal Screws Medium yellow 20 pc(s) Piece
Description
Multi-pin terminal strip. Rated cross-section: 2.5 mm², screw connection, direct mounting. Multi-pin terminal strips are established at Weidmüller for many years. The terminal blocks can be screwed directly on the housing a re-tighten the clamp screw by setting the conductor even in these terminals is not required. The terminal blocks are in the Materials KRG and PA and with different connection techniques available.
