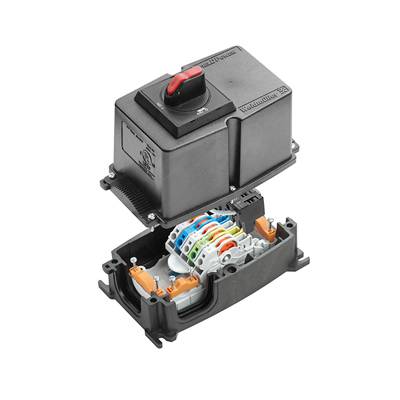

Weidmüller 1003260000 FP BOX ON/OFF Distributor box flexible: 2.5-6 mm² fixed: 1.5-6 mm² 1 pc(s) Black Box
EAN:
Part number:
Item no:
Packaging type
Box
Product type
Distributor box
Cross section (flexible) (min.)
2.5 mm²
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (min.)
1.5 mm²
Datasheet (PDF)
Number
Total (€ 222.69 / piece)
€ 222.69
plus VAT.
Only 5 Piece(s) available
Highlights & Details
FieldPower® Box, IP 65, Polycarbonate, GF 10, with ABB maintenance switch
- Distributor box
Our service for you
Technical specifications
- Height: 164 mm
- Flammability class according to UL 94: 5VA
- Blade size, push-in connection: 0.6 x 3.5 mm
- Conductor cross-section push-in connection, single-wire, max. 6 mm²
- Conductor cross-section push-in connection, single-wire, min.: 0.5 mm²
- Conductor cross-section, fine strand, push-in connection, max. 10 mm²
- Conductor cross-section, fine strand, push-in connection, min. 0.5 mm²
- Conductor cross-section, multi-strand, push-in connection, max.: 6 mm²
- Conductor cross-section, multi-strand, push-in connection, min.: 0.5 mm²
- Rated cross-section: 6 mm²
- Dimensioning surge voltage: 8 kV
- Insulating material: Polycarbonate, GF 10
- Protection system: IP65
- Clamping range, plug, max. 10 mm²
- Clamping range, plug, min. 0.75 mm²
- Packaging type
Box
- Product type
Distributor box
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Factory colour
Black
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Content
1 pc(s)
- Dim
(L x W) 181 mm x 104 mm
- Manufacturer part #
1003260000
18 - 8
- Stripping length
14 mm
- Connection
Quick-connect
- Insulation material
Polycarbonate
- Nominal voltage
600 V
- Width
104 mm
- Length
181 mm
- RoHS-compliant
Yes
- Temperature range
-40 °C - +45 °C. °C
Other
Black
104
181 mm
165 mm
9011
FALSE
Cover
Plastic
IP65
TRUE
Closed
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 195487 Weidmüller 1003260000 FP BOX ON/OFF Distributor box flexible: 2.5-6 mm² fixed: 1.5-6 mm² 1 pc(s) Black Box
User & Safety Instructions
User & Safety Instructions 195487 Weidmüller 1003260000 FP BOX ON/OFF Distributor box flexible: 2.5-6 mm² fixed: 1.5-6 mm² 1 pc(s) Black Box
Description
The FieldPower® power distributors support error-free installation in an extremely short space of time.
Branches and functions integrated in the cover can simply be plugged in.
Robust with high protection degree.
For cable seals consult accessories
Branches and functions integrated in the cover can simply be plugged in.
Robust with high protection degree.
For cable seals consult accessories
