Weidmüller 1012300000 Fuse serial terminal Screws Beige 10 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse serial terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
6.3 A
Datasheet (PDF)
Highlights & Details

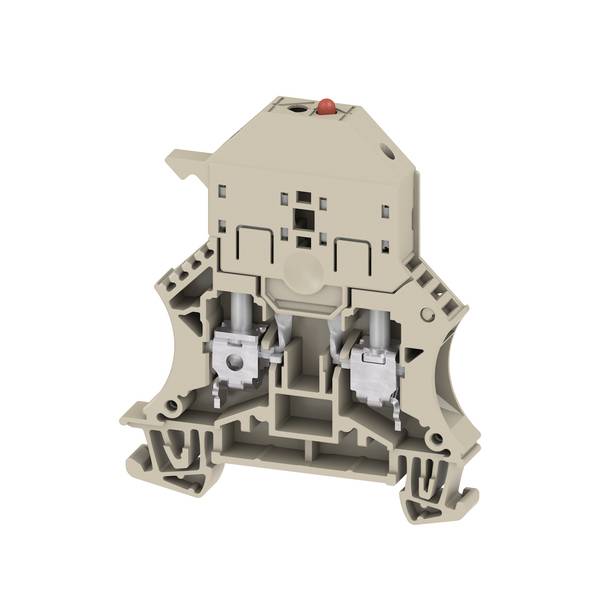

Fuse serial terminal, screw terminal, dark beige, 6 mm², 6.3 A, 150 V, number of connections: 2, number of floors: 1, TS 35
- WSI 6/LD 60-150V DC/AC
Technical specifications
- Product type
Fuse serial terminal
- Features
+ swivelling fuse holder
+ LED display
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- No. of rows
1
- Factory colour
Beige
- Nominal current
6.3 A
- Nominal current - rounded value
6.3 A
- Nominal voltage
150 V
- Manufacturer part #
1012300000
- Content
10 pc(s)
- Type
WSI 6/LD 60-150V DC/AC
- Dim
(L x W) 71.5 mm x 7.9 mm
- Width
7.9 mm
- Length
71.5 mm
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3749857 Weidmüller 1012300000 Fuse serial terminal Screws Beige 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3749857 Weidmüller 1012300000 Fuse serial terminal Screws Beige 10 pc(s)
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity. With removable carrier for fuse insert.
