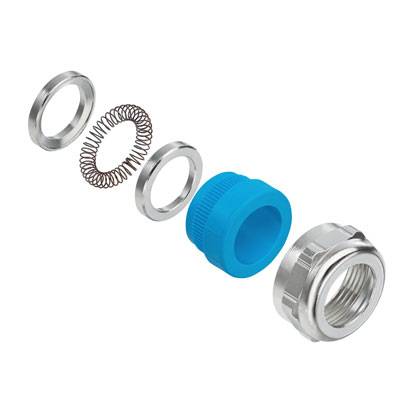

Weidmüller 1016130000 Cable gland EMC PG21 Brass Brass 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
Material
Brass
Clamp Ø
14 mm
Terminal Ø (max.)
18 mm
Features
EMC
Datasheet (PDF)
Highlights & Details
Heavy Duty Connectors, Accessories, cable glands, Brass, nickel-plated
- VG 21 HQ EMC 68 14-18
- This text is machine translated.
Technical specifications
- Material seal: TPE
- Size: HQ
- tightening torque, max. 15 Nm
- Product type
Cable gland
- Features
EMC
- Factory colour
Brass
- Internal thread
PG21
- Material
Brass
- Clamp Ø
14 mm
- Terminal Ø (max.)
18 mm
- Min. temperature
-40 °C
- Max. temperature
+130 °C
IP68
- Spanner size
30 mm
- Weight
44 g
- Halogen-free
No
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
1016130000
- Type
VG 21 HQ EMV68 14-18
Silver
Other
7001
Nickel-plated
30 mm
TRUE
FALSE
Brass
PG
Metal
FALSE
FALSE
TRUE
TRUE
IP68
Other
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 195656 Weidmüller 1016130000 Cable gland EMC PG21 Brass Brass 1 pc(s)
User & Safety Instructions
User & Safety Instructions 195656 Weidmüller 1016130000 Cable gland EMC PG21 Brass Brass 1 pc(s)
Description
Currently, heavy-duty connectors are used wherever there is a need for a secure, simple and time-saving assembly of machinery and facilities.
The connector housings are made of die-cast aluminium and offer excellent protection against dirt, moisture and mechanical stress.
Special modular connectors make it possible to integrate signals, power supply, pneumatics, and data connections into a single connector.
With the RockStar® heavy-duty connectors, Weidmüller offers a product line with many patented innovations that is oriented towards the future.
The RockStar® product line defines new standards with the comprehensive depth and width of its features. What other suppliers offer only as a custom configuration, Weidmüller supplies in its standard product line.
As a result, selecting the proper connector
is now easier than ever. You save both time and money. And your work flow is optimised. Thus you can strengthen your position on the market and leverage your competitive advantage
The connector housings are made of die-cast aluminium and offer excellent protection against dirt, moisture and mechanical stress.
Special modular connectors make it possible to integrate signals, power supply, pneumatics, and data connections into a single connector.
With the RockStar® heavy-duty connectors, Weidmüller offers a product line with many patented innovations that is oriented towards the future.
The RockStar® product line defines new standards with the comprehensive depth and width of its features. What other suppliers offer only as a custom configuration, Weidmüller supplies in its standard product line.
As a result, selecting the proper connector
is now easier than ever. You save both time and money. And your work flow is optimised. Thus you can strengthen your position on the market and leverage your competitive advantage
