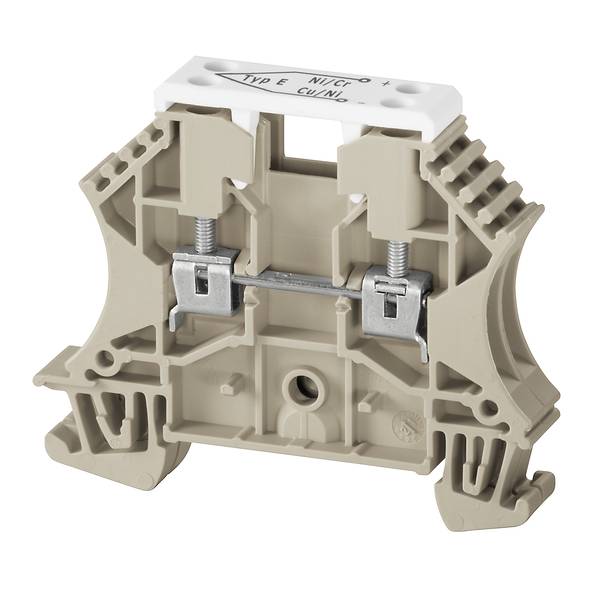

Weidmüller 1033300000 Thermocouple serial terminal Screws Beige 25 pc(s)
EAN:
Part number:
Item no:
Product type
Thermocouple serial terminal
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Content
25 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Thermocouple serial terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.13 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.13 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Beige
- Nominal voltage
55 V
- Manufacturer part #
1033300000
- Content
25 pc(s)
- Type
WDU 2.5/TC TYP E
- Dim
(L x W) 50 mm x 10.2 mm
- Width
10.2 mm
- Length
50 mm
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3749862 Weidmüller 1033300000 Thermocouple serial terminal Screws Beige 25 pc(s)
User & Safety Instructions
User & Safety Instructions 3749862 Weidmüller 1033300000 Thermocouple serial terminal Screws Beige 25 pc(s)
Description
The thermocoupler terminal is specially designed for transmitting small voltages in temperature measuring circuits. The special power rails ensure that no false signals can occur in the terminal in the event of temperature differences.
