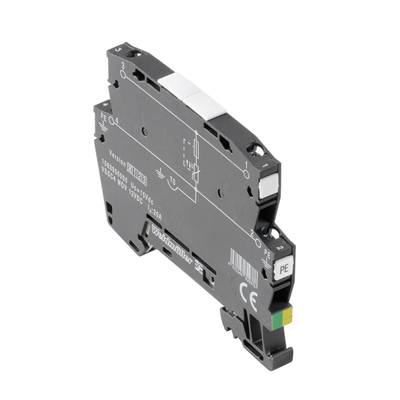

Weidmüller 1063960000 VSSC4 MOV 24VAC/DC Surge arrester 10-piece set Surge protection for: Switchboards 0.5 kA 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: Screw connection
- Tightening torque, max.: 0.8 Nm
- Tightening torque, min.: 0.5 Nm
- Design: Terminal
- Forward resistance:< 0.1 Ω
- Input voltage, max. UI: 42 V
- Input current, max. II: 500 mA
- Maximum continuous voltage, UC (AC): 30 V
- Maximum continuous voltage, UC (DC): 42 V
- Clamp range, max.: 4 mm²
- Clamp range, min.: 0.5 mm²
- Storage temperature: -40 °C to 80 °C
- conductor cross-section, single-wire, max.: 6 mm²
- conductor cross-section, multi-wire, max.: 4 mm²
- nominal current IN: 20 A
- net weight: 27.8 g
- optical function display: No
- Pole number: 1
- protection level UP (type.): 150 V
- surge current strength C1: 0.25 kA 8/20 µs 0.5 kV 1.2/50 µs
- shock current strength C2: 1 kA 8/20 μs
- rail: TS 35
- Overvoltage category: III
- Pollution degree: 3
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
0.5 kA
- Nominal voltage
24 V AC
34 V DC
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
1063960000
- Factory colour
Black
- Dim
(W x H x D) 6.2 x 76 x 58.5 mm
- Width
6.2 mm
- Height
76 mm
- Depth
58.5 mm
- Content
10 pc(s)
- Weight
27.8 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 283148 Weidmüller 1063960000 VSSC4 MOV 24VAC/DC Surge arrester 10-piece set Surge protection for: Switchboards 0.5 kA 10 pc(s)
User & Safety Instructions
User & Safety Instructions 283148 Weidmüller 1063960000 VSSC4 MOV 24VAC/DC Surge arrester 10-piece set Surge protection for: Switchboards 0.5 kA 10 pc(s)
Description
Surge protection. Measure tax rules. Surge protection with individual components. With varistor in clamp design. In the terminal design, Metal Oxide Varistors. They are for a maximum sinusoidal alternating current operation on the component is definitive. Each voltage greater than the specified, make sure within 25 ns derived. Varistors are medium to large services use.
