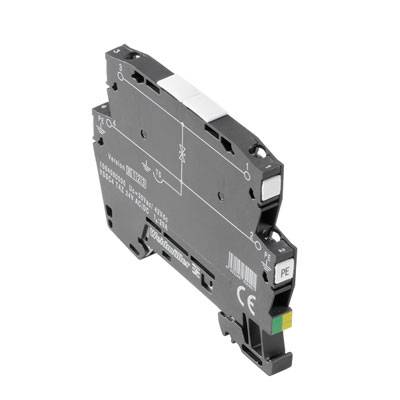

Weidmüller 1064080000 VSSC4 TAZ 24VAC/DC Surge arrester 10-piece set Surge protection for: Switchboards 0.1 kA 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: Screw connection
- Tightening torque, max.: 0.8 Nm
- Tightening torque, min.: 0.5 Nm
- Design: Terminal
- Forward resistance:< 0.1 Ω
- Input voltage, max. UI: 42 V
- Input current, max. II: 20 A
- highest continuous voltage, UC (AC): 30 V
- highest continuous voltage, UC (DC): 42 V
- clamping range, max.: 4 mm²
- Clamping range, min.: 0.5 mm²
- Storage temperature: -40 °C to 80 °C
- conductor cross-section, single-wire, max.: 6 mm²
- conductor cross-section, multi-wire, max.: 4 mm²
- nominal current IN: 20 A
- net weight: 26 g
- optical function display: No
- Pole number: 1
- protection level UP (type.): 70 V
- surge current strength C3: 15 A
- mounting rail: TS 35
- overvoltage category: III
- pollution degree: 3
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
0.1 kA
- Nominal voltage
24 V AC
34 V DC
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
1064080000
- Factory colour
Black
- Dim
(W x H x D) 6.2 x 76 x 58.5 mm
- Width
6.2 mm
- Height
76 mm
- Depth
58.5 mm
- Content
10 pc(s)
- Weight
26 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 283160 Weidmüller 1064080000 VSSC4 TAZ 24VAC/DC Surge arrester 10-piece set Surge protection for: Switchboards 0.1 kA 10 pc(s)
User & Safety Instructions
User & Safety Instructions 283160 Weidmüller 1064080000 VSSC4 TAZ 24VAC/DC Surge arrester 10-piece set Surge protection for: Switchboards 0.1 kA 10 pc(s)
Description
Surge protection. Measure tax rules. Surge protection with individual components. with suppressor diode. Suppressor diodes work similar to conventional zener diodes. After crossing a, set by the manufacturer breakdown voltage, the diode is within 10-100 PS conductive. The suppressor diodes have vis-à-vis the zener diodes a higher current carrying capacity and a shorter response time.
