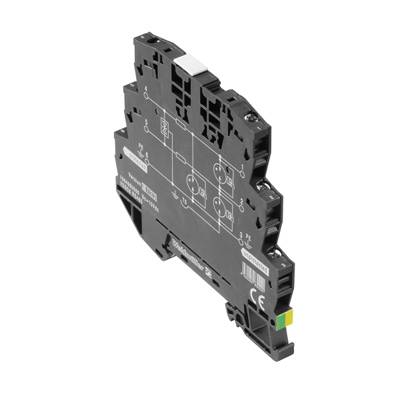

Weidmüller 1064980000 VSSC6 RS485 Surge arrester 10-piece set Surge protection for: Switchboards 2.5 kA 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: Screw connection
- Tightening torque, max.: 0.8 Nm
- Tightening torque, min.: 0.5 Nm
- Design: Clamp
- Forward resistance: 1.8 Ω 10 %
- Insertion loss: 113.7 MHz
- Input current, max. II: 500 mA
- highest continuous voltage, UC (DC): 15 V
- clamping range, max.: 4 mm²
- Clamping range, min.: 0.5 mm²
- Storage temperature: -40 °C to 80 °C
- conductor cross-section, single-strand, max.: 15 V clamping range: 6 mm²
- conductor cross-section, multi-wire, max.: 4 mm²
- Nominal current IN: 500 mA
- net weight: 42 g
- optical function display: No
- Pole number: 1
- protection level UP (type.): ≤ 100 V
- surge current strength C2: 2.5 kA 8/20 µs 5 kV 1.2/50 µs
- surge current strength C3: 10 A 10/1000 µs
- surge current strength D1: 0.5 kA 10/350 μs
- rail: TS 35
- Overvoltage category: III
- Pollution degree: 3
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
2.5 kA
- Nominal voltage
12 V DC
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
1064980000
- Factory colour
Black
- Dim
(W x H x D) 6.2 x 88.5 x 81 mm
- Width
6.2 mm
- Height
88.5 mm
- Depth
81 mm
- Content
10 pc(s)
- Weight
42 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 283248 Weidmüller 1064980000 VSSC6 RS485 Surge arrester 10-piece set Surge protection for: Switchboards 2.5 kA 10 pc(s)
User & Safety Instructions
User & Safety Instructions 283248 Weidmüller 1064980000 VSSC6 RS485 Surge arrester 10-piece set Surge protection for: Switchboards 2.5 kA 10 pc(s)
Description
Surge protection. Measure tax rules. By any coupling of overvoltages on cable runs can be sensitive signal inputs ge or destroyed. It is important, MSR devices in your immediate vicinity to protect. With a comprehensive product range for the MSR-area offers Weidmüller products in 2-piece, pluggable type or series terminal formats with the connection types spring and screw. These products are on binary and analog signals. Furthermore, Weidmüller designs with integrated components such as gas or Varistors. VARITECTOR stands for versatile and variable surge protection at Weidmüller which after the product standard IEC61643-21 tested. The Varitector series can be used in the applications according to IEC 61643-22/VDE 0845-3 in the classes C1, C2, C3 and D1. In the Product families VARITECTOR SPC and SSC, as well as MCZ OVP are optimally combines the electrical and mechanical properties. In doing so, the size and easy handling a decisive role. The overvoltage protection is designed for installation in a confined space, in the process, industrial and building automation.
