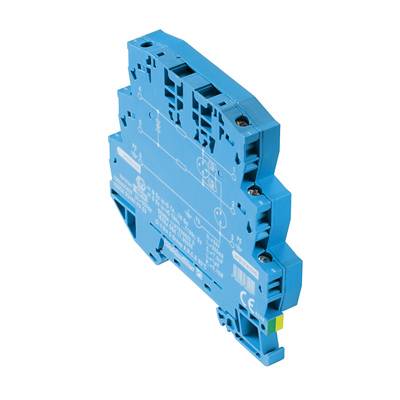

Weidmüller 1065020000 VSSC6 RS485 PA EX Surge arrester Surge protection for: Switchboards 2.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Overvoltage protection
- For RS422 and RS485 signals
- As a T branch when surface-mounted case K21 can be connected
Technical specifications
- Connection type: screw terminals.
- Tightening torque, max.: 0.8 Nm
- Tightening torque, min.: 0.5 Nm
- Design: Clamp
- Resistance 1.8 Ω 10%
- Insertion loss 250 MHz
- Input voltage, max. UI 35 V
- Input current, max. II: 300 mA
- Maximum continuous voltage, UC (DC) 35 V.
- Clamping range, max. 4 mm²
- Clamping range, min. 0.5 mm²
- Storage temperature -40 °C to 80 °C.
- Conductor cross-section, single-wire, max. 6 mm²
- Conductor cross-section, multi-strand, max. 4 mm²
- Nominal current IN 300 mA
- Net weight 56 g
- Optical function display: No.
- Number of poles: 1
- Protection level UP (type.): ≤ 2 kV
- Shock resistance C2 2.5 kA 8/20 µs 5 kV 1.2/50 µs
- Surge current strength C3: 10 A 10/1000 µs
- Surge current strength D1: 0.5 kA 10/350 μs
- Mounting rail TS 35
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
2.5 kA
- Nominal voltage
12 V DC
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
1065020000
- Type
VSSC 6RS485 PA EX
- Factory colour
Light blue
- Standards
IEC61643-21:2009, DIN EN 60079-0 2009, DIN EN 60079-26:2007, DIN EN 61241-11:2006
- Dim
(W x H x D) 12.4 x 88.5 x 81 mm
- Width
12.4 mm
- Height
88.5 mm
- Depth
81 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1780745 Weidmüller 1065020000 VSSC6 RS485 PA EX Surge arrester Surge protection for: Switchboards 2.5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1780745 Weidmüller 1065020000 VSSC6 RS485 PA EX Surge arrester Surge protection for: Switchboards 2.5 kA 1 pc(s)
Description
Surge protection. Measure tax rules. By any coupling of overvoltages on cable runs can be sensitive signal inputs ge or destroyed. It is important, MSR devices in your immediate vicinity to protect. With a comprehensive product range for the MSR-area offers Weidmüller products in 2-piece, pluggable type or series terminal formats with the connection types spring and screw. These products are on binary and analog signals. Furthermore, Weidmüller designs with integrated components such as gas or Varistors. VARITECTOR stands for versatile and variable surge protection at Weidmüller which after the product standard IEC61643-21 tested. The Varitector series can be used in the applications according to IEC 61643-22/VDE 0845-3 in the classes C1, C2, C3 and D1. In the Product families VARITECTOR SPC and SSC, as well as MCZ OVP are optimally combines the electrical and mechanical properties. In doing so, the size and easy handling a decisive role. The overvoltage protection is designed for installation in a confined space, in the process, industrial and building automation.
