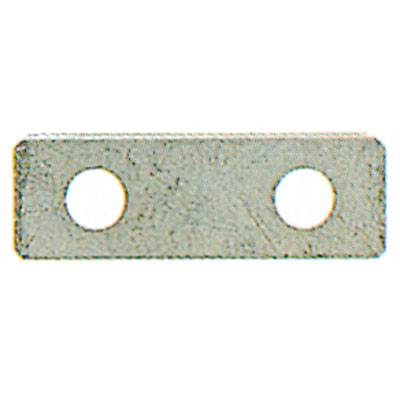

Weidmüller 1065300000 Grey 5 pc(s)
EAN:
Part number:
Item no:
Type
Blank
Factory colour
Grey
Dim
(L x W x H) 95 x 40 x 5 mm
Connector colour
Grey
Weight
148.01 g
Datasheet (PDF)
Highlights & Details
Cross connection
Our service for you
Technical specifications
- Factory colour
Grey
- Type
Blank
- Dim
(L x W x H) 95 x 40 x 5 mm
- Connector colour
Grey
- Weight
148.01 g
- Manufacturer part #
1065300000
- Industrial packaging
Yes
- Content
5 pc(s)
- Number of pins
2
- Width
40 mm
- Height
5 mm
- Length
95 mm
- RoHS-compliant
Yes
- Type
WQL 2 WFF300
- Cross section (flexible) (max.)
300 mm²
- Cross section (flexible) (min.)
10 mm²
- Type
WQL 2 WFF 300
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 283280 Weidmüller 1065300000 Grey 5 pc(s)
User & Safety Instructions
User & Safety Instructions 283280 Weidmüller 1065300000 Grey 5 pc(s)
Description
Cross-connector. Stud Terminals, accessories, poles: 2. The extensive stud terminals program provides secure connections for all applications, where energy is transmitted. The connection range is from 10 mm² to 300mm². Vercrimpten with cable lugs, the conductor on the threaded bolts on-hook and by tightening the hex nut securely connected to each other. Depending on the conductor cross-section are stud terminals with M5 up to M16 threaded bolts can be used. A low voltage drop and self-extinguishing material of the fire protection class V-0 (UL 94) guarantee the highest security. All stud terminals are in accordance with the international railway standards (EN 50343, EN 50155, NF F 61-017, NF 16-101; Ria 20) tested and meet the requirements listed there.
