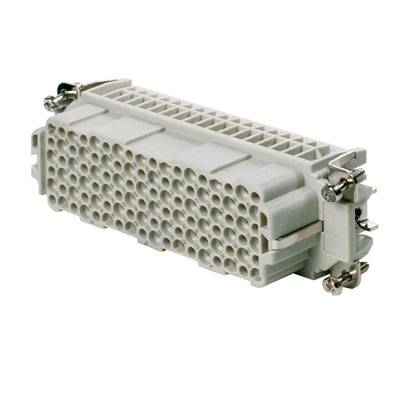

Weidmüller 1092130000 Pin inset RockStar® HDC HDD 72 Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Series
RockStar® HDC HDD
Features
copper-plated
Total no. of pins
72
Highlights & Details
Pin insert
- HDC HDD 72 MC WHERE SCHRAUBEN
Technical specifications
- Product type
Pin inset
- Series
RockStar® HDC HDD
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
72
- Core cross section (max.)
2.5 mm²
- Number of pins
72
- Core cross section (min.)
0.14 mm²
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 199797 Weidmüller 1092130000 Pin inset RockStar® HDC HDD 72 Crimp 1 pc(s)
Description
Pin insert. HDC-Use, pin, 250 V, 10 A, number of poles: 72, crimp connection, size: 6. The HDD series with formed contacts is designed for high number of poles in a confined space. Through the smaller design save user space during installation, without limit in the number of poles. The Conductor Connection level is designed as a crimp contact. For decades, the proven crimp connection technique in use. Crimp contacts are not included in the delivery of inserts. Number of poles: 72, rated current 10 A, rated voltage 250 V, rated voltage according to UL/CSA: 600 V AC/DC. Crimp connection.
