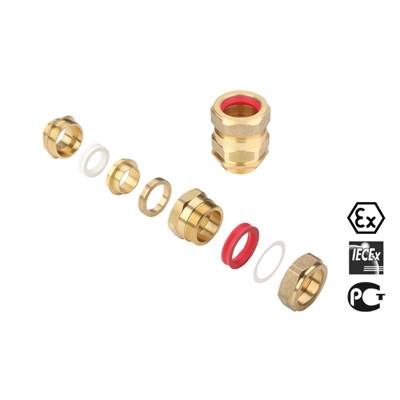

Weidmüller 1135660000 Cable gland M20 Brass Brass 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M20
Type
Braided reinforcement
Material
Brass
Clamp Ø
8.4 mm
Datasheet (PDF)
Highlights & Details
Cable gland
Our service for you
Technical specifications
- Thread pitch 1.5 mm
- Sealing: Silicone
- Sealing: Silicone
- O-ring: Silicone
- Protective cap size: L24
- Reinforcement. min. 0.15 mm
- Reinforcement. max. 0.35 mm
- Reinforcement type: Braided reinforcement
- Inner cable diameter min. 3.5 mm
- Inner cable diameter max. 8.4 mm
- Product type
Cable gland
- Factory colour
Brass
- External thread
M20
- Type
Braided reinforcement
- Material
Brass
- Clamp Ø
8.4 mm
- Terminal Ø (max.)
13.5 mm
- Thread length
16 mm
- Length
58 mm
- Min. temperature
-60 °C
- Max. temperature
+180 °C
IP54
IP66
IP68
- Spanner size
24 mm
- Weight
165.8 g
- Halogen-free
No
- Content
1 pc(s)
- Industrial packaging
Yes
- RoHS-compliant
Yes
- Manufacturer part #
1135660000
- Type
KDSX M20 BS O SC 2 G16
