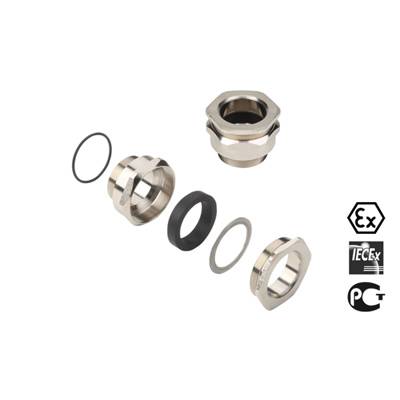

Weidmüller 1136710000 Cable gland M75 Brass Brass 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M75
Material
Brass
Clamp Ø
58 mm
Terminal Ø (max.)
68 mm
Datasheet (PDF)
Highlights & Details
Cable gland
- KSG M75 BS O NI 2G75
- This text is machine translated.
Our service for you
Technical specifications
- Thread pitch: 1.5 mm
- Seal insert: Silicone
- Seal: Silicone
- O-ring: Silicone
- Cap size: L90
- Product type
Cable gland
- Factory colour
Brass
- External thread
M75
- Material
Brass
- Clamp Ø
58 mm
- Terminal Ø (max.)
68 mm
- Thread length
19 mm
- Length
37 mm
- Min. temperature
-60 °C
- Max. temperature
+180 °C
IP66
IP68
- Spanner size
90 mm
- Weight
772 g
- Halogen-free
No
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
1136710000
- Type
KSG M75 BS O NI 2 G75
Documents & Downloads
Datasheet
Datasheet 200895 Weidmüller 1136710000 Cable gland M75 Brass Brass 1 pc(s)
User & Safety Instructions
User & Safety Instructions 200895 Weidmüller 1136710000 Cable gland M75 Brass Brass 1 pc(s)
