Weidmüller 1143040000 Ground connection Screws Dark beige 50 pc(s)
EAN:
Part number:
Item no:
Product type
Ground connection
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
Ground terminal
- WMF 2.5 BLZ PE
Our service for you
Technical specifications
- Product type
Ground connection
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Dark beige
- Manufacturer part #
1143040000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
WMF 2.5 BLZ PE
- Dim
(L x W x H) 90 x 5.08 x 44.5 mm
- Width
5.08 mm
- Height
44.5 mm
- Length
90 mm
- RoHS-compliant
Yes
- Weight
13 g
- Connector colour
Dark beige
- Type
WMF 2.5 BLZ PE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 307296 Weidmüller 1143040000 Ground connection Screws Dark beige 50 pc(s)
User & Safety Instructions
User & Safety Instructions 307296 Weidmüller 1143040000 Ground connection Screws Dark beige 50 pc(s)
Description

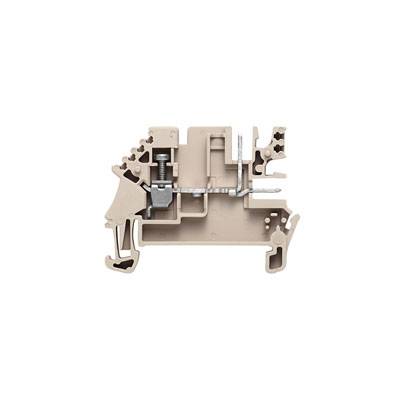

Ground terminal. W-series, rated cross-section: 2.5 mm², screw connection. With the new terminal strip family WMF (Weidmüller Multi-functional) offers Weidmüller a multi-functional solution for routing and distributing signals. The space-saving terminal combines all the necessary functions in a solution: You can with continuity, fuse, or isolating function and is equipped with an integrated shield connection. Three cross-connection channels, offering additional flexibility and a variety of labeling options.
