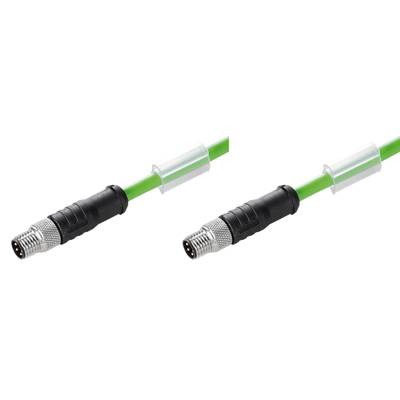

Weidmüller 1160930010 Sensor/actuator data cable (pre-fab) M8 Plug, straight 10.00 cm No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator data cable (pre-fab)
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M8 plug, straight
Connection side B
M8 plug, straight
Datasheet (PDF)
Highlights & Details
Bus-cable
- SAIL-M8 GM8SG-4 S0.1UIE
Technical specifications
- Type
SAIL-M8GM8SG-4S0.1UIE
- Product type
Sensor/actuator data cable (pre-fab)
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
M8 plug, straight
- Connection side B
M8 plug, straight
- No. of pins
4
- Cable length
10.00 cm
- Jacket material
PUR
- Nominal voltage
30 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Factory colour
Green
- Thread type connection side
M8
- Cable colour
Green
- Min. temperature
-30 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
1160930010
- Content
1 pc(s)
- RoHS-compliant
Yes
- Cable diameter (details)
9.98
0.1 m
Green
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201016 Weidmüller 1160930010 Sensor/actuator data cable (pre-fab) M8 Plug, straight 10.00 cm No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 201016 Weidmüller 1160930010 Sensor/actuator data cable (pre-fab) M8 Plug, straight 10.00 cm No. of pins (RJ): 4 1 pc(s)
Description
Bus line. Plug/plug, bridged: No, poles: 4, shielded: Yes, LED: No, 0.1 m. Connections between two I/O slaves or between the control and I/O participants will be safest via pre-assembled cables realisert. The offer ranges from PROFIBUS via CANopen, DeviceNet, EtherCAT to Ethernet cables.
