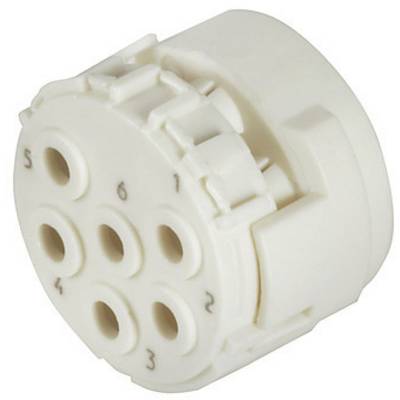

A white, round plastic plug with six numbered connection holes arranged in a circle.

Image similar

A white, round plastic plug with six numbered connection holes arranged in a circle.

Image similar

Product type

Plug inset

Connection

Crimp

Total no. of pins

6

Number of pins

6

Content

1 pc(s)

Datasheet (PDF)

Weidmüller

Dispatches on Mon, 2 Nov

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 3.61 / piece)

€ 3.61

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Net weight: 3 g
Insulation resistance:> 1010 Ω
Nominal voltage: 2 mm Contact = 300 V
Nominal current: 2 mm Contact = 20 A
Plug-in cycles:> 1000
Operating temperature, max.: 125 °C
Operating temperature, min.: -40 °C
Connection thread: M23
Fire behavior: V-0
Housing base material: Thermoplastic polyamide PA 6, PBT
Number of contacts / diameter: 6 x 2 mm

Product type: Plug inset

Connection: Crimp

Total no. of pins: 6

Number of pins: 6

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1774720 Weidmüller 1170000000 Plug inset 6 Crimp 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1774720 Weidmüller 1170000000 Plug inset 6 Crimp 1 pc(s)

Description

Contact insert for circular connectors to be installed in a housing.
