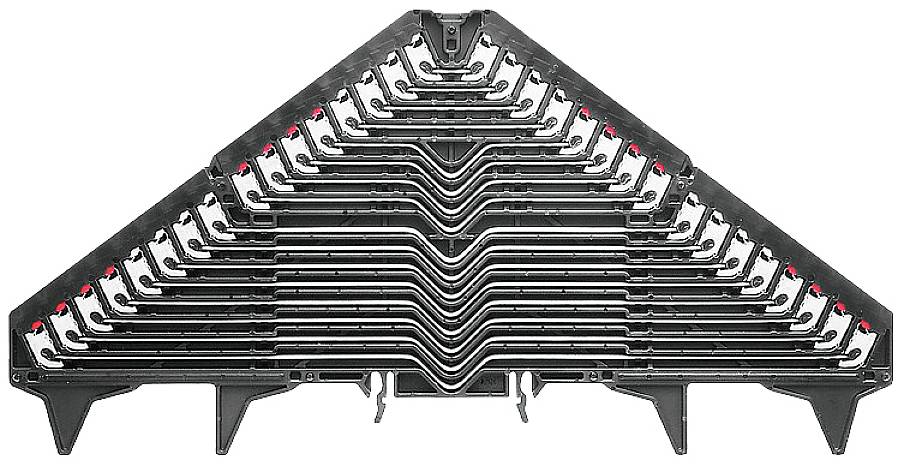

Weidmüller 1173650000 Shunt distributor 9.20 mm Push-in connector Black 20 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Shunt distributor
Connection
Push-in connector
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Datasheet (PDF)
Highlights & Details
The marshalling rack
- PRV 16 SW 35X15 WS/RT
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Shunt distributor
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG max.
16
- Clamp width
9.20 mm
- No. of rows
16
- Pins per row
4
- Number of pins
64
- Factory colour
Black
- Nominal current
11 A
- Nominal current - rounded value
11 A
- Min. stripping length
24 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
1173650000
- Content
20 pc(s)
- Type
PRV 16 SW 35X15 WS/RT
- Dim
(L x W x H) 113.50 x 9.20 x 225 mm
- Width
9.20 mm
- Height
225 mm
- Length
113.50 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
White-red
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1952732 Weidmüller 1173650000 Shunt distributor 9.20 mm Push-in connector Black 20 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1952732 Weidmüller 1173650000 Shunt distributor 9.20 mm Push-in connector Black 20 pc(s) Piece
