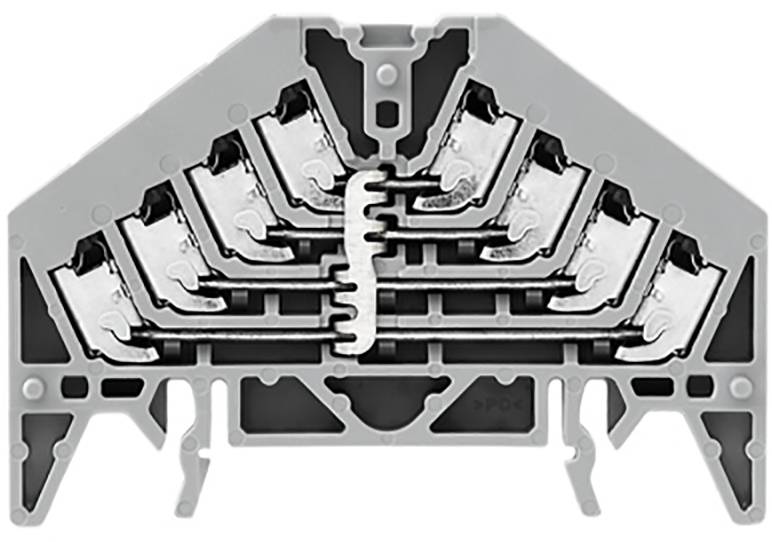

Weidmüller 1173890000 Potential distributor 9.20 mm Push-in connector Grey 20 pc(s)
EAN:
Part number:
Item no:
Product type
Potential distributor
Connection
Push-in connector
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Content
20 pc(s)
Datasheet (PDF)
Highlights & Details
Potential Distribution
- PPV 4 GR 35X7.5 DGR
Technical specifications
- Product type
Potential distributor
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG max.
16
- Clamp width
9.20 mm
- No. of rows
4
- Pins per row
4
- Number of pins
16
- Factory colour
Grey
- Min. stripping length
24 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
1173890000
- Content
20 pc(s)
- Type
PPV 4 GR 35X7.5 DGR
- Dim
(L x W x H) 47 x 9.20 x 70 mm
- Width
9.20 mm
- Height
70 mm
- Length
47 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1952738 Weidmüller 1173890000 Potential distributor 9.20 mm Push-in connector Grey 20 pc(s)
User & Safety Instructions
User & Safety Instructions 1952738 Weidmüller 1173890000 Potential distributor 9.20 mm Push-in connector Grey 20 pc(s)
Description
Shunting and potential distribution PPV4 GR 35X7.5 DGR
