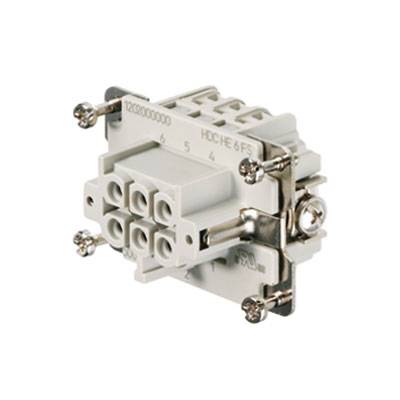

Weidmüller 1200200000 Socket inset RockStar® HDC HE 6 + PE Screws 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Screws
Series
RockStar® HDC HE
Features
copper-plated
Total no. of pins
6 + PE
Datasheet (PDF)
Highlights & Details
Socket insert
- HDC HE 6-FS
Technical specifications
- Net weight: 50 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 35.2 mm
- Depth: 51 mm
- Height Socket: 35.2 mm
- Length Socket: 51 mm
- Size: 3
- Series: He
- Rated voltage (DIN EN 61984): 500 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 24 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass-fiber reinforced (UL-listed and railway-qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 12
- conductor cross-section AWG (PE), min.: AWG 20
- stripping length Rated connection: 9 mm
- Wire stripping length PE connection: 10 mm
- max. 1.5 Nm
- Tightening torque min. PE connection: 1.2 Nm
- Mounting screw: M 4
- Cross-tip blade dimension: GR. PH1
- Slotted blade dimension (PE connection): SD 0.8 x 4.0
- Surface: Silver passivated
- Material: Copper alloy
- Slotted blade dimension (screw connection): SD 0.6 x 3.5
- Product type
Socket inset
- Series
RockStar® HDC HE
- Features
copper-plated
- Connection
Screws
- Total no. of pins
6 + PE
- Core cross section (max.)
2.5 mm²
- Number of pins
6
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
34
35.2 mm
51 mm
500 V
6
Bus
-40-125 °C
V0
6 kV
Screw connection
Silver
3
0.5-2.5 mm²
2.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
TRUE
Other copper alloys
24 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201485 Weidmüller 1200200000 Socket inset RockStar® HDC HE 6 + PE Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 201485 Weidmüller 1200200000 Socket inset RockStar® HDC HE 6 + PE Screws 1 pc(s)
Description
Socket insert. HDC-insert, female, 500 V, 24 A, 6 pins, screw connection, size: 3. The screw connection is the conductor connection level than a screw element. All screw connection elements (exception: size 1) are equipped with a wire protection spring. Number of pins: 6, Rated current 24 A, rated voltage 500 V, rated voltage according to UL/CSA: 600 V AC/DC, screw connection.
