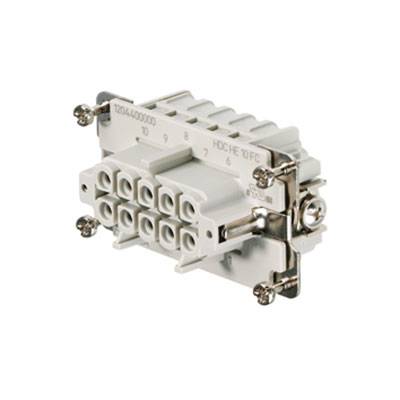

Weidmüller 1204400000 Socket inset RockStar® HDC HE 10 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Crimp
Series
RockStar® HDC HE
Features
copper-plated
Total no. of pins
10 + PE
Datasheet (PDF)
Highlights & Details
Socket insert
- HDC HE 10 FC
Technical specifications
- Net weight: 40 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 33.5 mm
- Depth: 64 mm
- Height Socket: 33.5 mm
- Length Socket: 64 mm
- Size: 4
- Series: He
- Rated voltage (DIN EN 61984): 500 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 16 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- plug-in cycles Au: ≥ 500
- Connection type PE: Screw connection
- cross-section AWG (PE), max.: AWG 12
- wire cross-section AWG (PE), min.: AWG 20
- Wire stripping length Rated connection: 7.5 mm
- PE connection: 10 mm
- Tightening torque max. PE connection: 1.5 Nm
- Tightening torque min. PE connection: 1.2 Nm
- Mounting screw: M 4
- Cross-head blade dimension: GR. PH1
- Slotted blade dimension (PE connection): SD 0.8 x 4.0
- Product type
Socket inset
- Series
RockStar® HDC HE
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
10 + PE
- Core cross section (max.)
4 mm²
- Number of pins
10
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
34
33.5 mm
64 mm
500 V
10
Bus
-40-125 °C
V0
6 kV
Crimp connection
Silver
3
0.5-4 mm²
4-4 mm²
0.5-4 mm²
0.5-4 mm²
TRUE
Other copper alloys
16 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201598 Weidmüller 1204400000 Socket inset RockStar® HDC HE 10 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 201598 Weidmüller 1204400000 Socket inset RockStar® HDC HE 10 + PE Crimp 1 pc(s)
Description
Socket insert. HDC-insert, female, 500 V, 16 A, number of poles: 10, crimp connection, size: 4. The crimp connection is the conductor connection level as crimp contact. For decades, the proven crimp connection technique in use. Crimp contacts are not included in the delivery of inserts. Number of poles: 10, rated current 16 A, rated voltage 500 V, rated voltage according to UL/CSA: 600 V AC/DC. Crimp connection.
This text is machine translated.
This text is machine translated.
