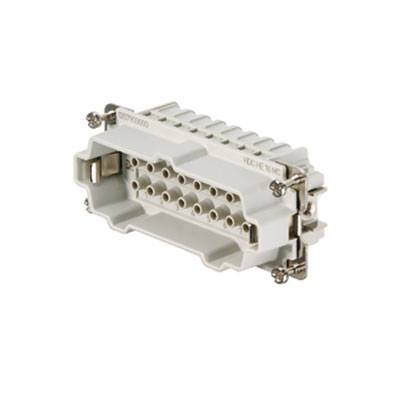

Weidmüller 1207900000 Pin inset RockStar® HDC HE 16 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Series
RockStar® HDC HE
Features
copper-plated
Total no. of pins
16 + PE
Datasheet (PDF)
Highlights & Details
Pin insert
- HDC HE16MC
Technical specifications
- Net weight: 46 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 34 mm
- Depth: 84.5 mm
- Length Socket: 84.5 mm
- Size: 6
- Series: He
- Rated voltage (DIN EN 61984): 500 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 16 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- plug-in cycles Au: ≥ 500
- Connection type PE: Screw connection
- cross-section AWG (PE), max.: AWG 12
- wire cross-section AWG (PE), min.: AWG 20
- Wire stripping length Rated connection: 7.5 mm
- PE connection: 10 mm
- Tightening torque max. PE connection: 1.5 Nm
- Tightening torque min. PE connection: 1.2 Nm
- Mounting screw: M 4
- Cross-head blade dimension: GR. PH1
- Slotted blade dimension (PE connection): SD 0.8 x 4.0
- Height of plug: 34 mm
- Product type
Pin inset
- Series
RockStar® HDC HE
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
16 + PE
- Core cross section (max.)
4 mm²
- Number of pins
16
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
34
34 mm
84.5 mm
500 V
16
Pin
-40-125 °C
V0
6 kV
Crimp connection
Silver
3
0.5-4 mm²
4-4 mm²
0.5-4 mm²
0.5-4 mm²
TRUE
Other copper alloys
16 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201612 Weidmüller 1207900000 Pin inset RockStar® HDC HE 16 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 201612 Weidmüller 1207900000 Pin inset RockStar® HDC HE 16 + PE Crimp 1 pc(s)
Description
Pin insert. HDC-Use, pin, 500 V, 16 A, number of poles: 16, crimp connection, size: 6. The crimp connection is the conductor connection level as crimp contact. For decades, the proven crimp connection technique in use. Crimp contacts are not included in the delivery of inserts. Number of poles: 32, rated current 16 A, rated voltage 500 V, rated voltage according to UL/CSA: 600 V AC/DC. Crimp connection.
