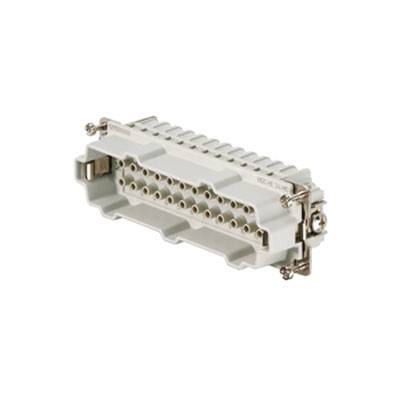

Weidmüller 1211500000 Pin inset RockStar® HDC HE 24 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Series
RockStar® HDC HE
Features
copper-plated
Total no. of pins
24 + PE
Datasheet (PDF)
Highlights & Details
Pin insert
- HDC HE24MC
Technical specifications
- Net weight: 64 g
- Limit temperature: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 34 mm
- Depth: 111 mm
- Length Socket: 111 mm
- Size: 8
- Series: He
- Rated voltage (DIN EN 61984): 500 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 16 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- plug-in cycles Au: ≥ 500
- Connection type PE: Screw connection
- cross-section AWG (PE), max.: AWG 12
- wire cross-section AWG (PE), min.: AWG 20
- Wire stripping length Rated connection: 7.5 mm
- PE connection: 10 mm
- Tightening torque max. PE connection: 1.5 Nm
- Tightening torque min. PE connection: 1.2 Nm
- Mounting screw: M 4
- Cross-head blade dimension: GR. PH1
- Slotted blade dimension (PE connection): SD 0.8 x 4.0
- Height of plug: 34 mm
- Product type
Pin inset
- Series
RockStar® HDC HE
- Features
copper-plated
- Connection
Crimp
- Total no. of pins
24 + PE
- Core cross section (max.)
4 mm²
- Number of pins
24
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
34
34 mm
111 mm
500 V
24
Pin
-40-125 °C
V0
6 kV
Crimp connection
Silver
III
3
0.5-4 mm²
4-4 mm²
0.5-4 mm²
0.5-4 mm²
TRUE
Other copper alloys
16 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201640 Weidmüller 1211500000 Pin inset RockStar® HDC HE 24 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 201640 Weidmüller 1211500000 Pin inset RockStar® HDC HE 24 + PE Crimp 1 pc(s)
Description
Pin insert. HDC-Use, pin, 500 V, 16 A, number of poles: 24, crimp connection, size: 8. The crimp connection is the conductor connection level as crimp contact. For decades, the proven crimp connection technique in use. Crimp contacts are not included in the delivery of inserts. Number of poles: 48, rated current 16 A, rated voltage 500 V, rated voltage according to UL/CSA: 600 V AC/DC. Crimp connection.
