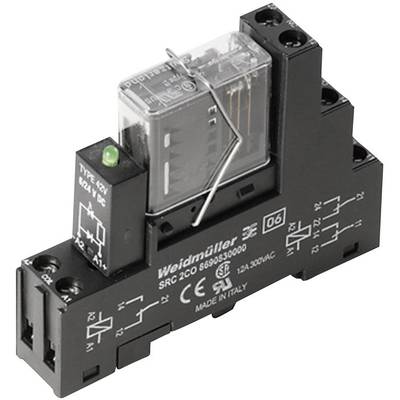

Weidmüller 1218410000-1 RCIKIT 24VDC 2CO LD/FG Positively Driven Relay Coupler
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Status indicator: Green LED
- Switch-on delay: ≤ 12 ms
- Switch-off delay: ≤ 6 ms
- min Switching capacity: 1 mA at 24 V, 10 mA at 10 V, 100 mA at 5 V.
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: No.
- Mechanical switch position indicator: No.
- Over voltage category III
- Pollution level: 2
- Voltage strength input - output: 2.5 kVeff / 1 min.
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 2.5 mm²
- Clamping range, min. 0.5 mm²
- Clamping range, max. 2.5 mm²
- Blade dimension: GR. PH1
- Type
RCIKIT 24VDC 2CO LD/FG
- Connection
Screw terminal
- Factory colour
Black
- Max. pick-up voltage
18 V DC
- Contact type
2 change-overs
- Contact material
AgCuNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
250 V DC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
144 W
- Durability
50 x 10 6 circuits
- Creepage distance (coil/clips)
10 mm
- Resistance (coil)
720 Ω
IP20
- Max. temperature
70 °C
- Min. temperature
-40 °C
- Length
61.6 mm
- Width
15.6 mm
- Height
77.6 mm
- Dim
(L x W x H) 61.6 x 15.6 x 77.6 mm
- Content
1 pc(s)
- Weight
71.1 g
- RoHS-compliant
- Switching voltage
250 V AC
- Type
RCIKIT 24VDC 2CO LD/FG
- Connection
Screw connection 0.5 to 2.5 mm²
- Product type
Relay component
Documents & Downloads
Datasheet
Datasheet 506785 Weidmüller 1218410000-1 RCIKIT 24VDC 2CO LD/FG Positively Driven Relay Coupler
Description
RCI power relays have been developed for use in industrial applications and are equipped with screw connections. Other advantages are the industrial pinning, the free-wheeling diode and the LED status display.
Scope of delivery
- Relay sockets for DIN rail
- LED display unit
- Bracket
- Plug-in relay
- Markers.
