Weidmüller 1224390000 Plug inset 19 Soldering 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug inset
Connection
Soldering
Total no. of pins
19
Number of pins
19
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 17.64 / piece)
€ 21.84
-19 %
€ 17.64
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Net weight: 10 g
- Insulation resistance:> 106 mΩ
- Contact surface: Gold-plated
- Nominal current: 8 A / 1 mm + 10 A / 1.5 mm
- Plug-in cycles:> 1000
- Operating temperature, max.: 125 °C
- Operating temperature, min.: -40 °C
- Contact material: Copper-zinc alloy
- Connection thread: M23
- Fire behavior: V-0
- Housing base material: Thermoplastic polyamide PA 6, PBT

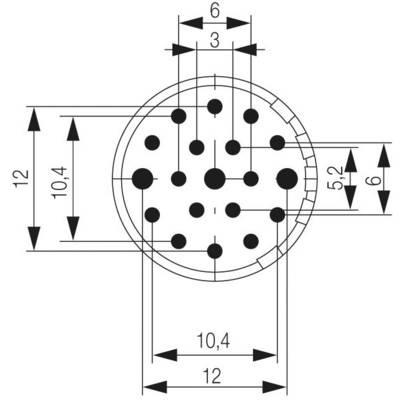

- number of contacts / diameter 16 x 1 mm + 3 x 1.5 mm
- Product type
Plug inset
- Connection
Soldering
- Total no. of pins
19
- Number of pins
19
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1774803 Weidmüller 1224390000 Plug inset 19 Soldering 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1774803 Weidmüller 1224390000 Plug inset 19 Soldering 1 pc(s)
Description
Connector contact SAI-M23-SE-19-F
