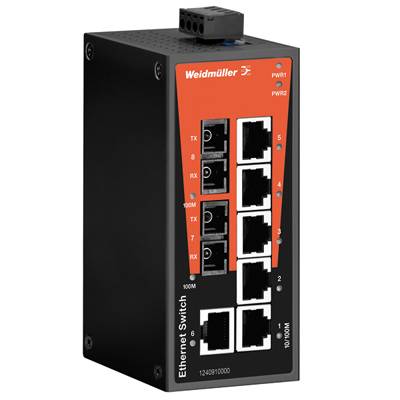

Weidmüller 1240910000 IE-SW-BL08-6TX-2SC Industrial Ethernet switch 10 / 100 MBit/s PoE
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Network Switch
- IE-BK-BL 08-6 TX-2 SC
Technical specifications
- Product type
Industrial Ethernet switch
- LAN transfer rate
100 MBit/s
- Transfer rate
10 / 100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
6
- PoE ports
4
- 10/100 Mbps ports
6 x
- Fibre-optic ports
2
- Router features
PoE
- Weight
275 g
- Width
50 mm
- Height
115 mm
- Depth
70 mm
- Type
IE-SW-BL08-6TX-2SC
- Interfaces
RJ45
- Factory colour
Multicolour
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
DIN rail (top hat rail)
50
115 mm
70 mm
IP30
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201882 Weidmüller 1240910000 IE-SW-BL08-6TX-2SC Industrial Ethernet switch 10 / 100 MBit/s PoE
User & Safety Instructions
User & Safety Instructions 201882 Weidmüller 1240910000 IE-SW-BL08-6TX-2SC Industrial Ethernet switch 10 / 100 MBit/s PoE
Conformity certificate
Conformity certificate 201882 Weidmüller 1240910000 IE-SW-BL08-6TX-2SC Industrial Ethernet switch 10 / 100 MBit/s PoE
Description
Network Switch, unmanaged, Fast Ethernet, number of ports: 6 x RJ45, 2 * SC-Multi-mode, IP30, -10 °C...+60 °C. The Basic Line from weidmüller consists of unmanaged Plug & Play switches in a robust IP30-protected aluminum housing. The devices are equipped with Fast Ethernet and Gigabit Ethernet ports available and offer a cost-effective solution for Industrial Ethernet networks. A variant is equipped with Fast Ethernet and Power-over-Ethernet ports. All devices are designed for use in harsh industrial environments and have international approvals, such as CE, cULus, Class I Div. 2/atex and DNV/GL and are therefore internationally in many applications. Plug & Play switches in a sturdy aluminum housing (IP30). Compact design Switches for a cost-effective entry-level solution. Fast Ethernet versions with 5 and 8 ports. Versions with copper or fiber-optic interface (Multi mode and single mode). Plug & Play Full Gigabit Switch with 5 ports. Power-over-Ethernet Switch with 6 Fast Ethernet Ports, 4 of which PoE+ ports. Approvals: CE, FCC, cULus, Class I Div. 2/atex, DNV/GL.
