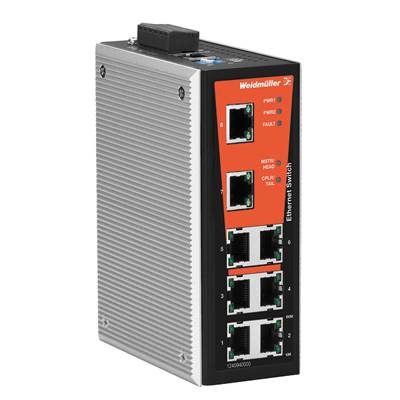

Weidmüller 1240940000 IE-SW-VL08MT-8TX Industrial Ethernet switch 100 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Network Switch
- IE-SW-VL08MT-8 TX
Technical specifications
- Product type
Industrial Ethernet switch
- LAN transfer rate
100 MBit/s
- Transfer rate
100 MBit/s
- Working principle
Managed switch
- Ethernet ports
8
- 10/100 Mbps ports
8 x
- Weight
1160 g
- Width
53.6 mm
- Height
135 mm
- Depth
105 mm
- Type
IE-SW-VL08MT-8TX
- Interfaces
RJ45
- Max. ambient temperature
75 °C
- Min. ambient temperature
-40 °C
- Length
90 mm
DIN rail (top hat rail)
53.6
135 mm
105 mm
IP30
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201885 Weidmüller 1240940000 IE-SW-VL08MT-8TX Industrial Ethernet switch 100 MBit/s
User & Safety Instructions
User & Safety Instructions 201885 Weidmüller 1240940000 IE-SW-VL08MT-8TX Industrial Ethernet switch 100 MBit/s
Description
Network Switch. managed, Fast Ethernet, number of ports: 8x RJ45, IP30, -40 °C...+75 °C. The Value Line from weidmüller consists of unmanaged and managed switches in a high-quality IP30 protected metal case. The devices are equipped with Fast Ethernet and Gigabit Ethernet ports available. The Value Line Managed Switches support a variety of useful management functions, such as fast ring redundancy, Port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and error message by E-Mail or relay. The ring redundancy can be easily via the web-based management interface or with a DIP switch on the top of the switches can be set up. Unmanaged Plug & Play switches in a high-quality metal housing (IP30). Managed Switches for the introduction into a configurable network infrastructure. Unmanaged Full Gigabit Switch with 8 ports. Approvals: CE, FCC, cULus, Class I Div. 2/atex, DNV/GL.
