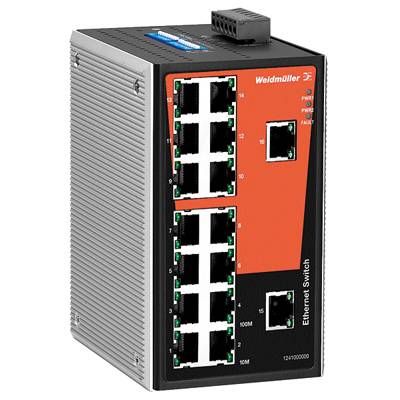

Weidmüller 1241000000 IE-SW-VL16-16TX Industrial Ethernet switch 100 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Network Switch
- IE-SW-VL16-16TX
Technical specifications
- Product type
Industrial Ethernet switch
- LAN transfer rate
100 MBit/s
- Transfer rate
100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
16
- 10/100 Mbps ports
16 x
- Weight
1140 g
- Width
80.5 mm
- Height
135 mm
- Depth
105 mm
- Type
IE-SW-VL16-16TX
- Interfaces
RJ45
- Max. ambient temperature
60 °C
- Min. ambient temperature
0 °C
DIN rail (top hat rail)
80.5
135 mm
105 mm
IP30
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201890 Weidmüller 1241000000 IE-SW-VL16-16TX Industrial Ethernet switch 100 MBit/s
User & Safety Instructions
User & Safety Instructions 201890 Weidmüller 1241000000 IE-SW-VL16-16TX Industrial Ethernet switch 100 MBit/s
Description
Network Switch, unmanaged, Fast Ethernet, number of ports: 16x RJ45, IP30, 0 °C...+60 °C. The Value Line from weidmüller consists of unmanaged and managed switches in a high-quality IP30 protected metal case. The devices are equipped with Fast Ethernet and Gigabit Ethernet ports available. The Value Line Managed Switches support a variety of useful management functions, such as fast ring redundancy, Port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and error message by E-Mail or relay. The ring redundancy can be easily via the web-based management interface or with a DIP switch on the top of the switches can be set up. Unmanaged Plug & Play switches in a high-quality metal housing (IP30). Managed Switches for the introduction into a configurable network infrastructure. Unmanaged Full Gigabit Switch with 8 ports. Approvals: CE, FCC, cULus, Class I Div. 2/atex, DNV/GL.
